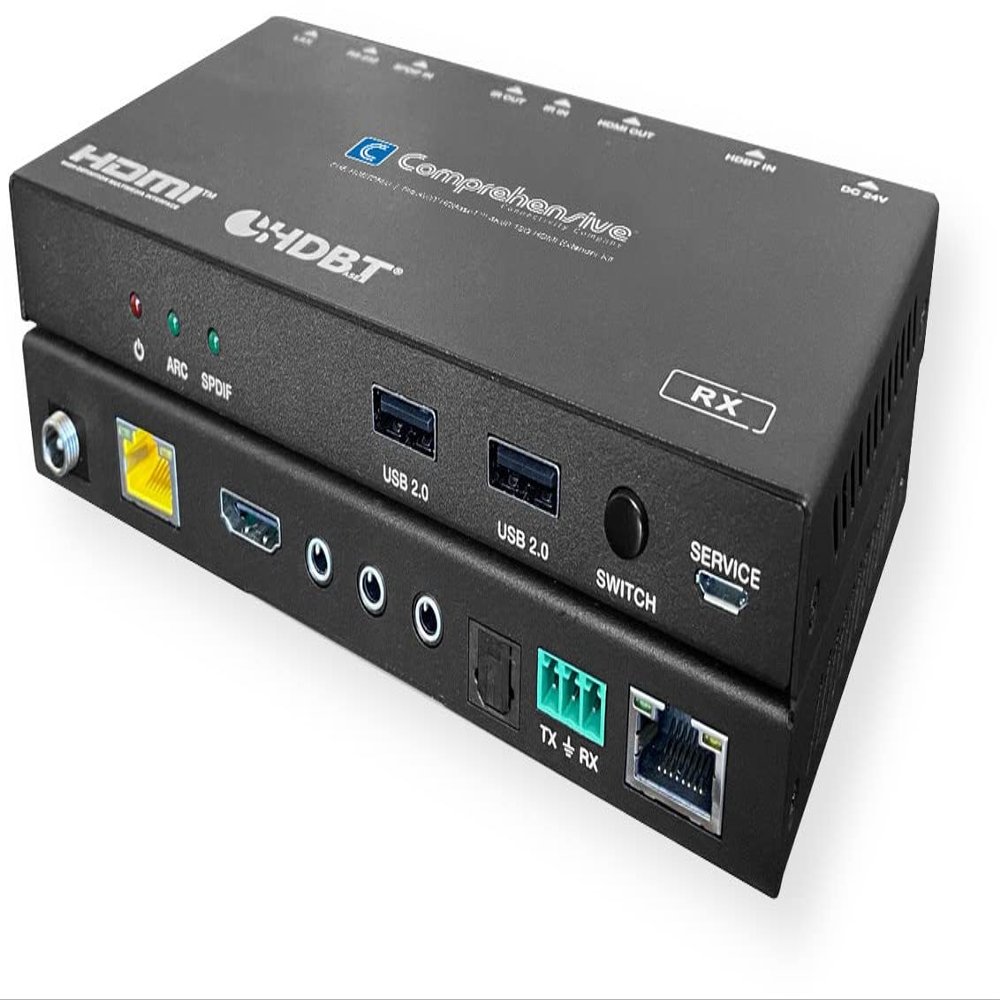

Comprehensive CHE-HDBT255U Pro AV/IT Integrator Series 4K60 18G HDMI Extender Kit; HDMI, USB, Audio, LAN, IR and RS232 Connectivity; Resolutions up to 4K at 60Hz; Digital/Analog Audio De-embedding

Description

• Supports 18Gbps video bandwidth
• Extend 4K HDMI, USB, Audio, LAN and RS232 Signals over a Single UTP Cable up to 330ft
• De-embedded audio to analog stereo output on receiver
• Supports PoC (Power over Cable) function
• Compact design for easy and flexible installation

Comprehensive CHE-HDBT255U Pro AV/IT Integrator Series 4K60 18G HDMI Extender Kit; HDMI, USB, audio, LAN, IR and RS232 Connectivity; Resolutions up to 4K at 60Hz; Digital/Analog Audio De-embedding

Key Features:
- Supports 18Gbps video bandwidth
- Extend 4K HDMI, USB, Audio, LAN and RS232 Signals over a Single UTP Cable up to 330ft
- De-embedded audio to analog stereo output on receiver
- Supports PoC (Power over Cable) function
- Compact design for easy and flexible installation
- Supports USB KVM function

Specifications:

Transmitter I/O Connections:
- Inputs: 1x HDMI Type A (19-pin female)
- Outputs: 1x HDBT OUT (RJ45, 8-pin female), 1x SPDIF OUT (S/PDIF), 1x L/R OUT (3.5mm Stereo Mini-jack), 1x LAN (RJ45)
- Control: 1x IR IN (3.5mm Stereo Mini-jack), 1x IR OUT (3.5mm Stereo Mini-jack, 1x RS-232 (Phoenix jack), 1x SERVICE (Mini-USB, Update port), 1 USB HOST (USB Type B)

Receiver I/O Connections:
- Inputs: 1x HDBT IN (RJ45, 8-pin female), 1x SPDIF IN (S/PDIF)
- Outputs: 1x HDMI Type A (19-pin female), 1x LAN (RJ45)
- Control: 1x IR IN (3.5mm Stereo Mini-jack), 1x IR OUT (3.5mm Stereo Mini-jack), 1x RS-232 (Phoenix jack), 1x SERVICE (Mini-USB, Update port), 2 USB 2.0 (USB Type A)

Audio and Video:
- Video Bandwidth: 18Gbps
- Max Video Resolution & Distances: 4K 60Hz 4:4:4 = 296ft/90m 1080p 60Hz 4:4:4 = 330ft/100m
- Supported Resolutions: 4K2K 50/60Hz 4:4:4, 4K2K 50/60Hz 4:2:2,4K2K 50/60Hz 4:2:0, 4K2K 30Hz 4:4:4, 1080p, 1080i, 720p, 720i, 480p, 480i. All HDMI 3D TV formats, All PC resolutions including 1920 x 1200

Other Specifications:
- Construction: Metal (Black)
- What's in the Kit: CHE-HDBT255U x1, Installation Guide x1, Power Supply x1, 3-pin Phoenix connector x2, Mounting Brackets & Screws x4, IR emitter x1, IR receiver x1
- Dimensions (WxDxH): 6.49 x 3.46 x 0.77 inches
- Total Weight: 0.74 pounds
