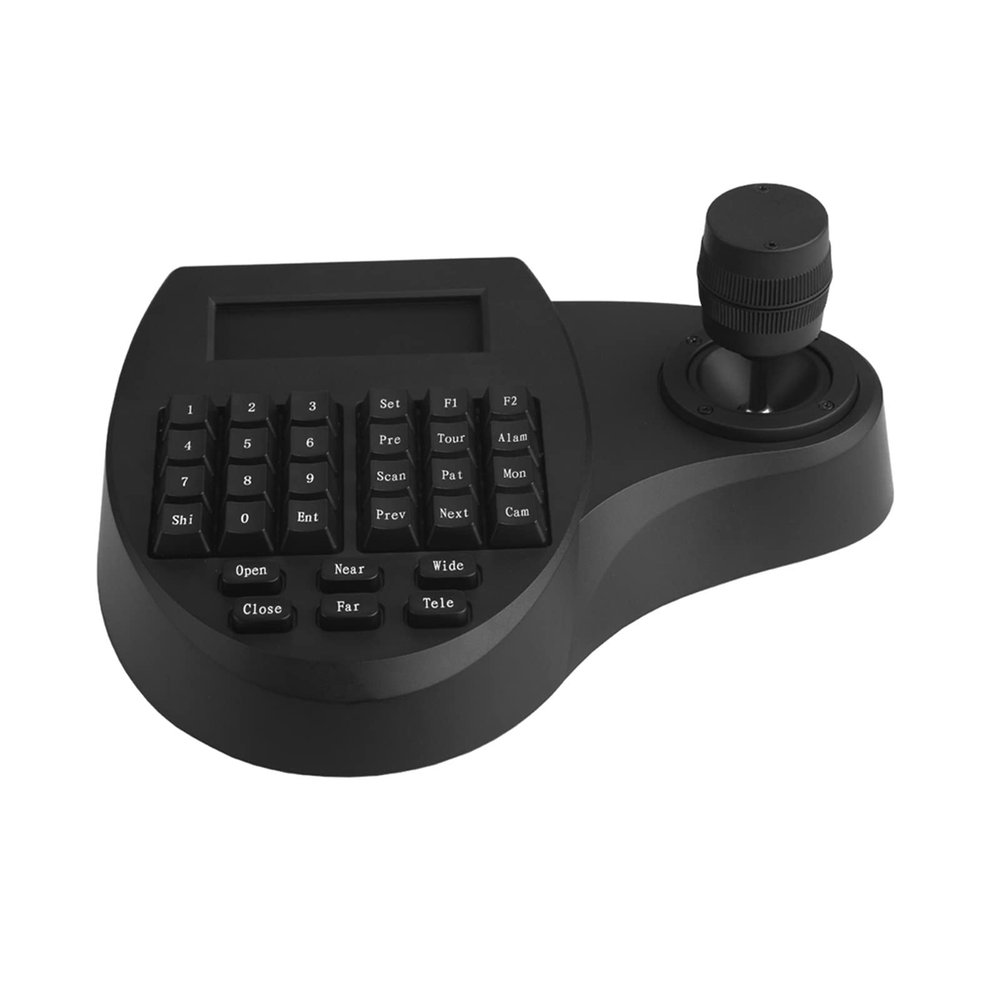

Conferencing Camera PTZ Camera 3D Joystick Keyboard Controller RS485 Control for AHD TVI CVI SDI Speed Dome Camera Pan Tilt Zoom for Business Meetings

Description

• Support 4pcs keyboard linkage, each keyboard can supports 32pcs domes at most
• Expediently and comfortably use according to ergonomics design
• Can show display the command menu, protocol, current some ID, output monitor ID, joystick status
• 3- joystick can control the speed dome of pan/tilt and zoom-in/out
• Built-in multi protocols and baud rate, support all the shortcut key of dome

Specification:

Model Number
K72
Lcd display
2.5 inch high resolution TNT LCD display
Communication mode
RS485 /RS 422
Baud rate
2400bps,4800bps,9600bps,19200bps
Control protocol
PELCO P / D
OSD Menu
Password protection for OSD english menu
Type of connection
6Pins Interface, RJ45( Optional, ready for future)
Visca Protocol
Can control conference camera(Optional)
Transmission distance
1200M
Power supply
DC( 9V-12V)10%
Electric current
350mA
Power consumption
5W
Environment temperature
-20 - +50
Humidity
0-95%(Non-condensation)
Product Dimensions
219(L)*181(W)*97(H)mm
Net weight
1.3Kg
Packed Dimension
43x20x15CM
