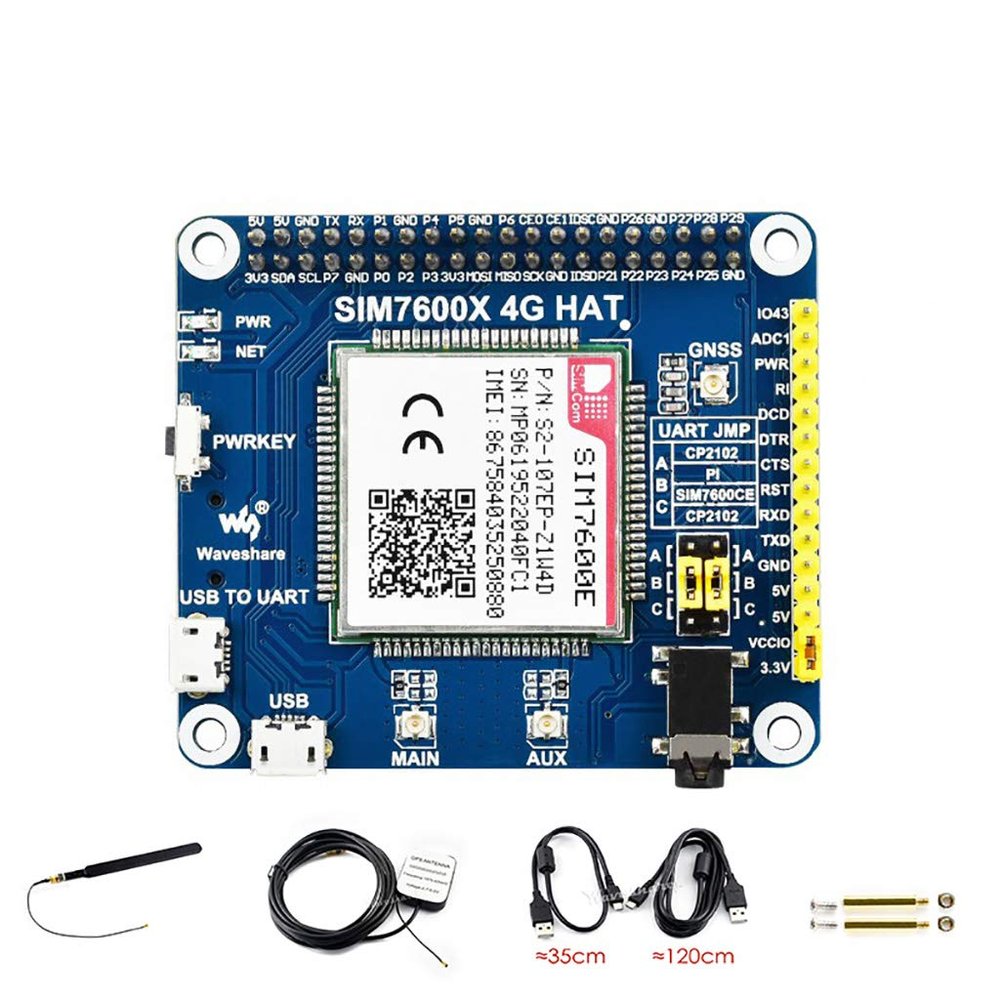

Coolwell SIM7600E LTE Cat-1 HAT for Raspberry Pi, Supports 3G / 2G Communication, GNSS Positioning,Supports dial-up, Telephone Call, SMS, TCP, UDP, DTMF, HTTP, FTP, etc.

Description

• Supports dial-up, telephone call, SMS, TCP, UDP, DTMF, HTTP, FTP, etc; Supports GPS, BeiDou, Glonass, LBS base station positioning;Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT
• Onboard USB interface, to test AT Commands, get GPS positioning data, and so on;Onboard CP2102 USB to UART converter, for serial debugging
• Onboard audio jack and audio decoder for making telephone call;Onboard voltage translator, operating voltage can be configured to 3.3V or 5V via jumper
• SIM card slot, supports 1.8V/3V SIM card; TF card slot for storing data like files, messages, etc; 2x LED indicators, easy to monitor the working status

Features At A Glance

Supports dial-up, telephone call, SMS, TCP, UDP, DTMF, HTTP, FTP, etc. Supports GPS, BeiDou, Glonass, LBS base station positioning Onboard USB interface, to test AT Commands, get GPS positioning data, and so on Onboard CP2102 USB to UART converter, for serial debugging Breakout UART control pins, to connect with host boards like Arduino/STM32 SIM card slot, supports 1.8V/3V SIM card TF card slot for storing data like files, messages, etc. Onboard audio jack and audio decoder for making telephone call 2x LED indicators, easy to monitor the working status Onboard voltage translator, operating voltage can be configured to 3.3V or 5V via jumper Baudrate: 300bps ~ 4Mbps (default: 115200bps) Autobauding baudrate: 9600bps ~ 115200bps Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set) Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT

Package Content

1. SIM7600E LTE Cat-1 HAT x1
2. LTE Antenna x1
3. GPS External Antenna (B) x1
4. USB-A to Micro-B cable x2
5. RPi screws pack (2pcs) x1
