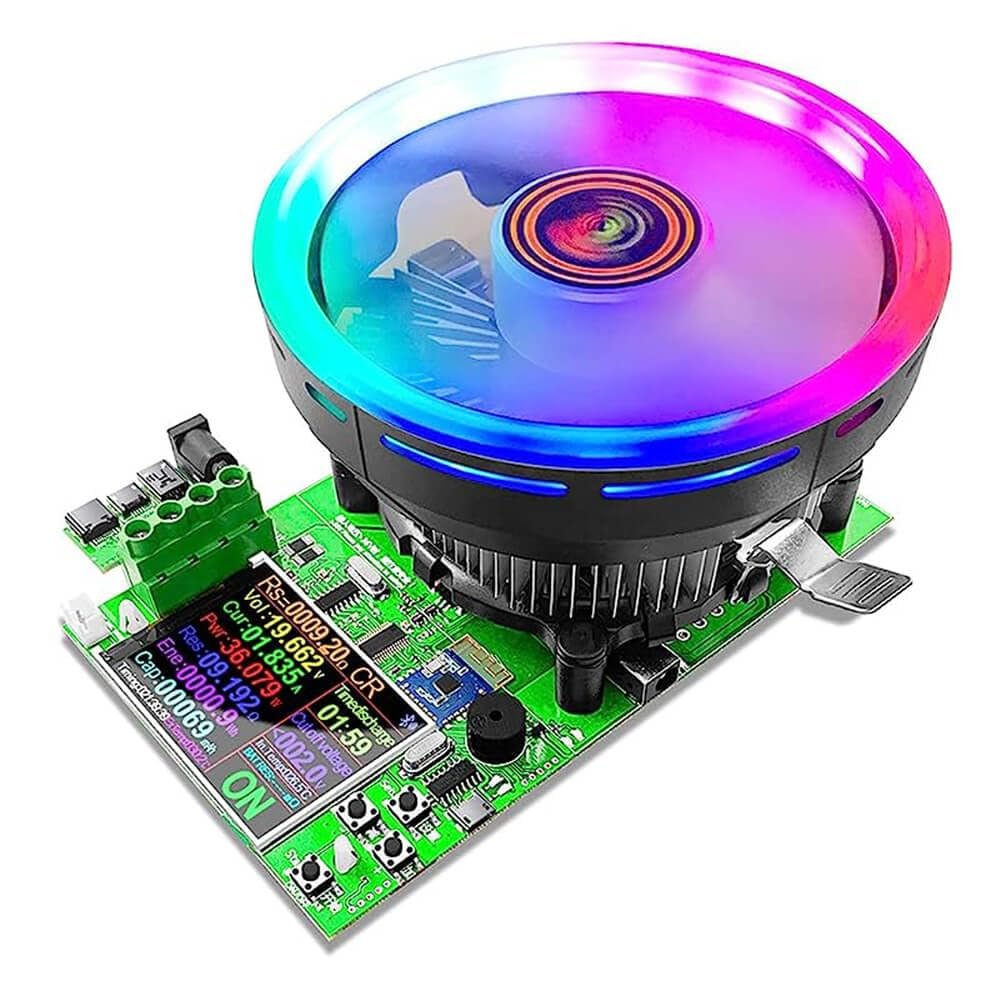

DC Electronic Load Tester Battery Capacity Monitor USB Load Tester Color Screen Data Monitoring Discharge Charge Power Meter Supply Checker 180W 4 Working Modes(2.4 inch)

Description

• Our DC electronic load tester compatible with 4 major discharge modes (full coverage of constant current,constant power,constant resistance,and constant voltage).
• The battery capacity monitor with 2.4" large color screen and durable cooling fan,180W high power/200V wide voltage/20A high current,strong performance,high power,long life.
• Compatible with both Bluetooth wireless/wired connection modes,support testing Android,Type-C cable,Mini and other wires,there are three intelligent safety protections,which is safe and reliable.
• The internal use of high-power large discharge tube discharge test,by checking and killing,by testing various data cable/charger test/discharge aging/DC power adapter current, voltage, power and other parameters,convenient and fast.
• The USB load tester can easily test various data such as voltage/current/capacity of various lithium batteries/batteries, continuous load discharge aging test,powerful,safe and reliable.

Four operating modes
1. Constant current operation (CC)
2. Constant resistance operation (CR)
3. Constant power operation (CP)
4. Constant voltage operation (CV)
Three protection settings
1. Overload protection
2. Overcurrent protection
3. High temperature protection

Note:
(The actual working current is limited by the maximum power, please adjust according to the law of energy saving) Built-in over-current, over-temperature, over-power safety protection function, if the protection interface pops up, please note that after the parameter adjustment, it should be adjusted to the maximum power before discharging , You can slowly adjust the preset value during start-up and discharge to adjust it to the maximum discharge power

Specification:
Test voltage: 2~200V
Working current: 0.2~30A
DL24 discharge power: voltage * current <150 W
DL24P discharge power: voltage * current <180 W
Constant load adjustment rate:+/-3%+3 bytes
Size: 20X20X14CM

Product List
1. DL24P color display Bluetooth digital control curve version with Tesr x1
2.DC12V 1A power supply x1
3.USB data cable1
4. Temperature probe x1
5. Red and black single wire alligator clip wire x1
