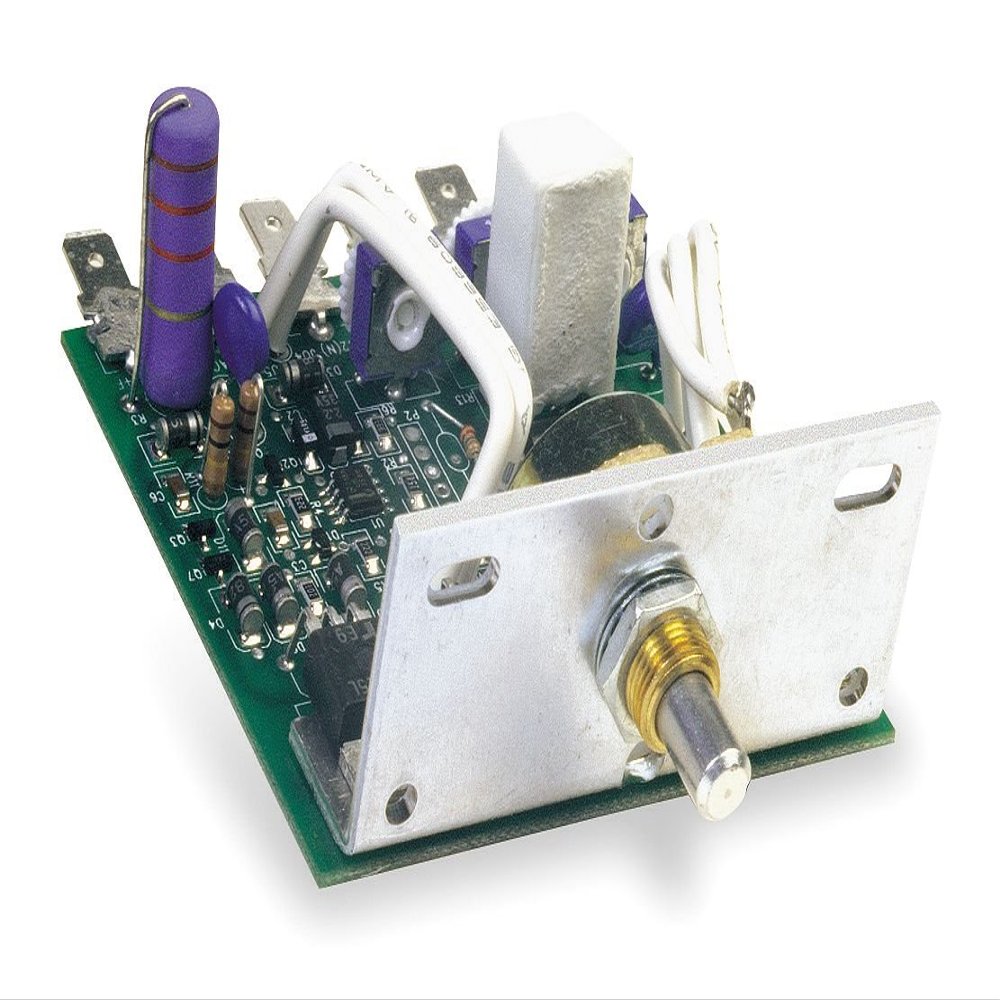

DC Speed Control, 90/180VDC, 2A, NEMA 1/4

Description

• Price For: Each For Use With: Material Handling, Laboratory, Food Processing, Pump, Fan/Blower, Conveyor, Machine Tool, DC Motor and Spooling Applications Speed Regulation: +/-1% of Base Speed Includes: Speed Potentiometer Knob and Dial Plate Linear Acceleration: Fixed 0.5 sec. Width: 2.8" Depth: 3.3" Follower Circuit: No Voltage Output: 0 to 90/180VDC External Switches: None
• HP @ Lower Volts: 1/50 to 1/6 Shunt Wound Volts: 10/20VDC Current/Torque Limit: None Operating Temp.: -10 Degrees to 45 Degrees C Max. Amps: 2 Speed Range: 25:1 Item: DC Speed Control Rotation: Single Direction IR Compensation: Adjustable Mount Type: Chassis DC Speed Control: SCR Enclosure: Chassis HP @ Higher Volts: 1/25 to 1/3 AC Input Voltage: 120/240VAC Dynamic Braking: No
• Height: 1.3" Standards: cULus Recognized Accepts Tach Feedback: No Country of Origin (subject to change): United States

' DC Speed Control, Enclosure Chassis, Max. Amps 2, Voltage Output 0 to 90/180VDC, Speed Range 25:1, Rotation Single Direction, External Switches None, AC Input Voltage 120/240VAC, DC Speed Control SCR, HP @ Lower Volts 1/50 to 1/6, HP @ Higher Volts 1/25 to 1/3, Linear Acceleration Fixed 0.5 sec., Current/Torque Limit None, Speed Regulation +/-1 Percent of Base Speed, Shunt Wound Volts 10/20VDC, Accepts Tach Feedback No, Dynamic Braking No, IR Compensation Adjustable, Follower Circuit No '
