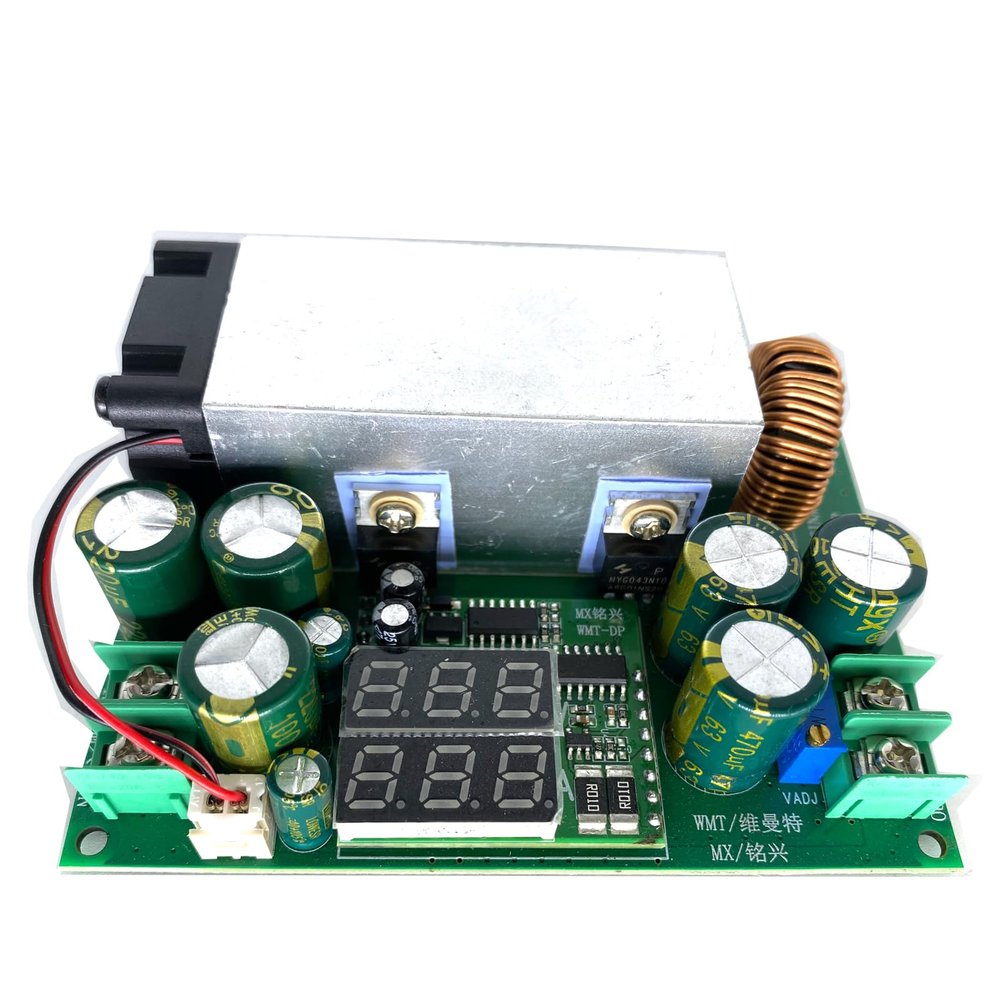

DC-DC 25A 600W Adjustable Step Down Module High Power 12V-75V to 5V 19V 21V 24V 48V with Digital Display of Voltage and Current

Description

• Product parameters: Input voltage: DC12-75V, not suitable for 72V batteries; Output voltage: 2.5V-50V adjustable (can only be stepped down); Output current: 20A (maximum); 25A overcurrent; Maximum power: 600W; Digital display function added for more convenient use; overcurrent protection; continuously adjustable output voltage and current. In high-power situations, the wiring should be as thick as possible
• Voltage conversion 12-80V to 5V, 12-80V to 9V, 14-80V to 12V, 17-80V to 14.8V, 19-80V to 16.8V, 22-80V to 19V, 24-80V to 21V, 28-80V to 24V, 35-80V to 30V, 41-80V to 36V ,48-80V to 42V, 55-80V to 48V
• Interface description IN+: Input positive terminal, IN-: Input negative terminal, OUT+: Output positive terminal, OUT- output negative terminal, VADJ: Output voltage adjustment, clockwise increases, counterclockwise decreases
• Note: This module is a step-down module and cannot be stepped up. To charge batteries or storage batteries, diodes need to be added.
• [Satisfactory Service]: We Provide 24-hour online service,If you encounter any problems, Please email SELLER SUPPORT (Not Amazon support), we will give you a perfect solution.

Product parameters
Input voltage: DC12-75V. It cannot be used for 72V batteries
Output voltage: Adjustable from 2.5V to 50V (only voltage reduction is allowed)
Output current: 20A (MAX), 25A overcurrent
Maximum power: 600W
Conversion efficiency: 93%
Protection: Overcurrent protection
Add digital display function for more convenient use. The output voltage and current are continuously adjustable. In cases of high power, the wiring should be as thick as possible
Voltage conversion
12-80V to 5V
12-80V to 9V
14-80V to 12V
17-80V to 14.8V
19-80V to 16.8V
22-80V to 19V
24-80V to 21V
28-80V to 24V
35-80V to 30V
41-80V to 36V
48-80V to 42V
55-80V to 48V
Interface description
IN+: Input the positive terminal
IN-: Input the negative terminal
OUT+: Output positive terminal
OUT- Output negative terminal
VADJ: Output voltage adjustment, clockwise increases, counterclockwise decreases
Note: This module is a step-down module and cannot be stepped up. To charge batteries or storage batteries, diodes need to be added.
Package Included:
1*DC-DC 25A 600W Adjustable Step Down Module
