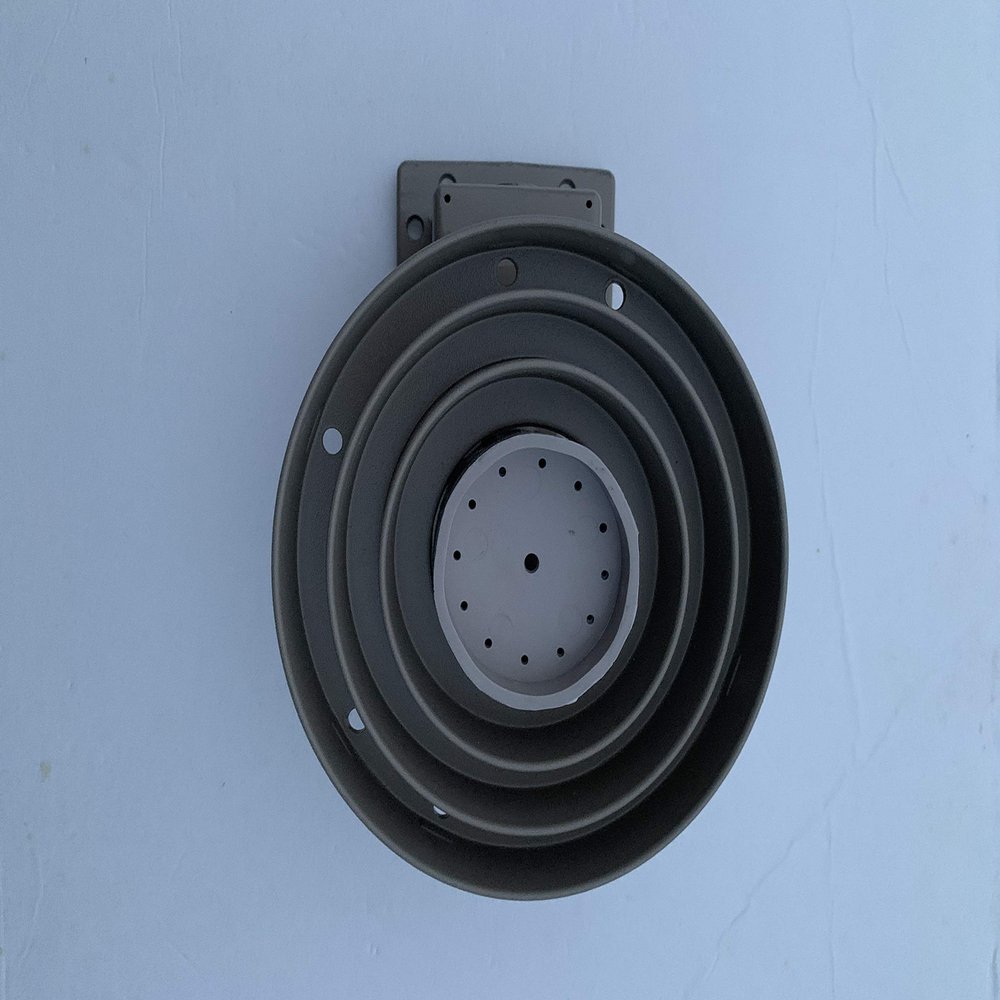

DH Prime Focus C Band Dual Linear Feed Big Dish Bud Commercial C-Band

Description

• Dual C-band feed
• Adjustable Scalar Ring
• f/D Ratio: .30 .42

Description:
DH Satellites Dual C band feed offers
simultaneous reception of horizontal and
vertical C band polarities from 3.4 to 4.2GHz.
Ideal C band linear feed for commercial
installation.

Specifications:

Part Number: 1339C
Input Frequency: 3.4 4.2GHz
f/D Ratio: .30 .42
Cross pol Isolation: 35db min
VSWR: 1.5:1.0
RF Port: WR 229
Temperature Range: 40C to +60C
Number of Ports: 2
Polarization: Linear
Weight: 2.5 lbs approx.

Features:

Adjustable Scalar Ring
Cast Aluminum Construction
Mounts to all Standard Feed Supports
