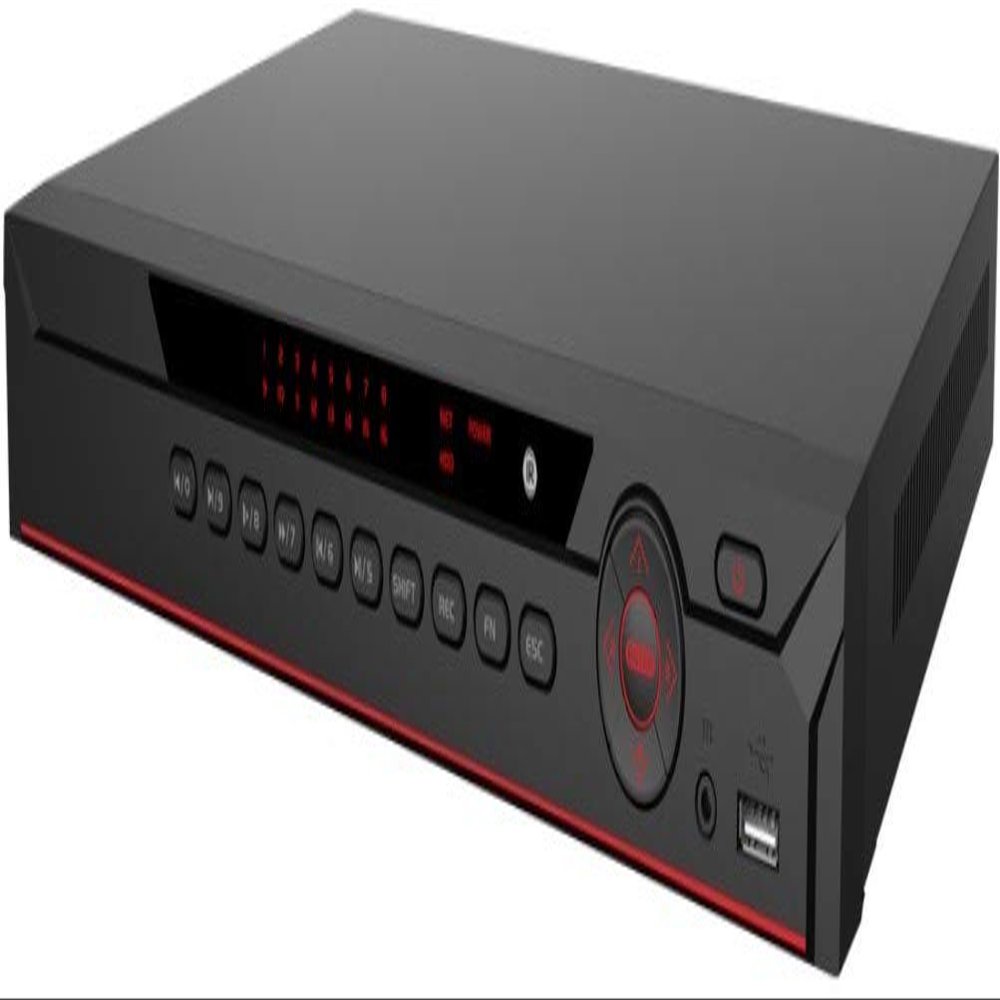

Diamond XVR502AN-16/16P-4KL 16-Channel Penta-Brid 4K Mini 1U Digital Video Recorder w/o Hard Drive; Support HDCVI/AHD/TVI/CVBS/IP Video Inputs; Face Detection, Smart Search and Intelligent Video Syste

Description

• Embedded processor - H.264+/H.264 dual-stream video compression
• Support HDCVI/AHD/TVI/CVBS/IP video inputs
• Max. 24 channels IP camera inputs, each channel up to 8MP - Max. 96Mbps incoming bandwidth
• Face Detection, Smart Search and Intelligent Video System
• 16 Channel Penta-brid 4K Mini 1U Digital Video Recorder, 1 SATA, HDMI/VGA, Pentabrid (IP, HD-CVI, HD-TVI, AHD, Analog), 8CH Additional IP 8MP@30fps, PoE

Max Image Resolution 8MP System CompressionH.264+/H.264 Main ProcessorEmbedded Processor Video Interface1 HDMI, 1 VGA, 1 TV Video ResolutionHDMI: 3840x2160, 2560x1440, 1920x1080, 1280x1024, 1280x720, 1024x768; VGA: 1920x1080, 1280x1024, 1280x720, 1024x768 Multi-Screen Display1/4/8/9/16 (IP extension mode: disabled), 1/4/8/9/16/25 (IP extension mode: enabled) HDCVI Camera Input4K/6MP/4MP/1080P@25/30fps, 720P@50/60fps, 720P@25/30fps IPC In16+8 Channel, each channel up to 8MP OSDYes Audio In1 Audio Out1 2 Way AudioReuse audio in/out, RCA Recording Resolution4K, 6MP, 5MP, 4MP, 3MP, 1080P, 720P, 960H, D1, CIF, QCIF Recording Frame RateMainstream: 4K (1~7fps); 6MP (1~10fps); 5MP (1~12fps); 4MP/3MP (1~15fps); 1080P/720P/960H/D1/CIF/QCIF (1~25/30fps) Substream: 960H (1~15fps); D1/CIF/QCIF (1~25/30fps) Bit Rate1Kbps ~ 8192Kbps Per Channel Recording ModeManual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), alarm, stop Record Interval1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec Playback Channels1/4/9/16 Playback SearchTime/Calendar Search, Event (motion) Playback FunctionPlay, Pause, FF, FB; Digital zoom Backup ModeUSB Device/Network Trigger EventsRecording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips Video DetectionMotion Detection, MD Zones: 396 (22 x 18), Video Loss, Tampering and Diagnosis Network FunctionHTTP, TCP/IF, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DONS, FTP, Alarm Server, P2P, Search (Support Dahua IP camera, DVR, NVS, etc.) Network Max. Users128 InteroperabilityONVIF 2.42, CGI Conformant MobileiPhone, Android RS4851 Port, for PTZ Control USB2 USB Ports (1 USB 2.0, 1 USB 3.0)
