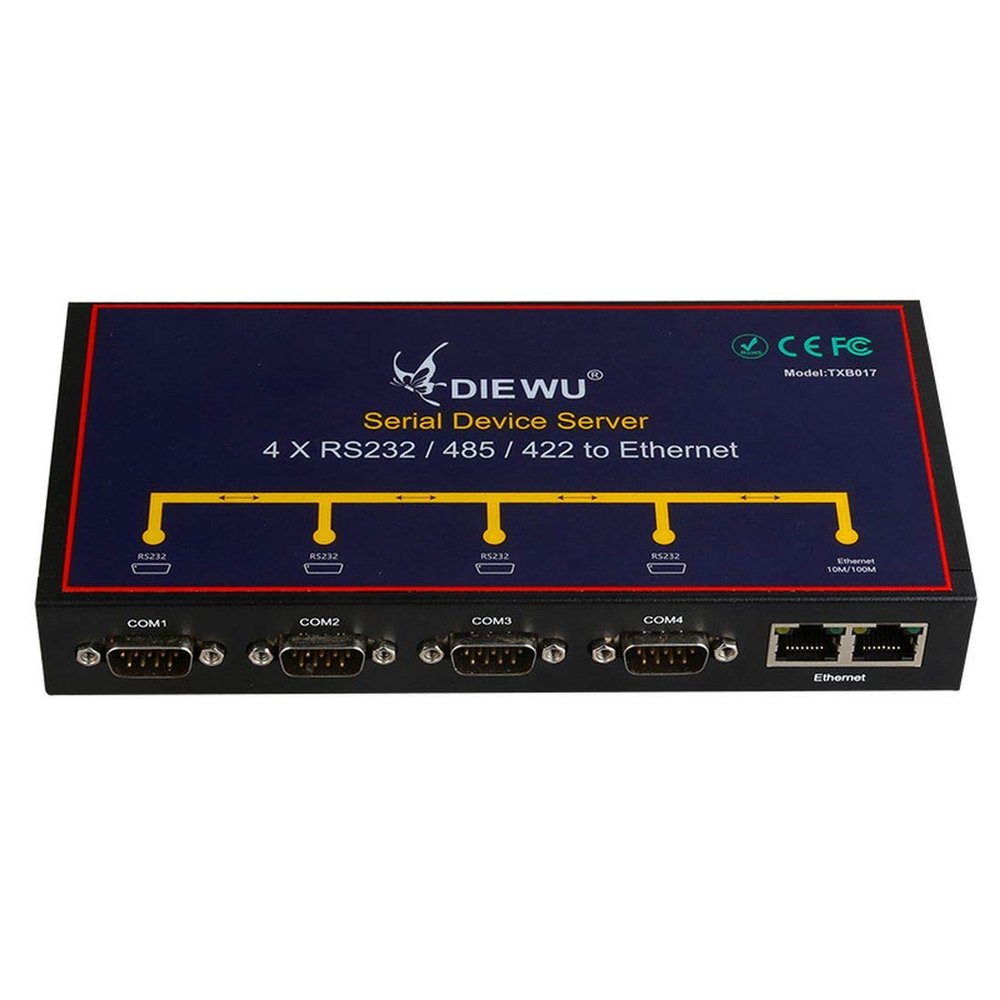

DIEWU Industrial 4 Ports Serial Device Server Converter Ethernet to RS232/422/485 Support VCOM/TCP Server/TCP Client/UDP Mode

Description

• Chipset: IP214
• Port number: 2 port 10/100M Auto MDI-MDIX RJ45?4port RS232/485/422
• Standard: IEEE 802.3?IEEE 802.3u?IEEE 802.3x?IEEE 802.3az
• Network media: 10Base-T,cat3 or above UTP,100Base-Tx,cat5 UTP
• Operation modes: VCOM,TCP Server, TCP Client, UDP, Paired-Master/Slave, Reverse Telnet, RFC2217, Disabled

Product specification:
Model number: TXB017
Chipset: IP214
Port number: 2 port 10/100M Auto MDI-MDIX RJ45?4port RS232/485/422
Standard: IEEE 802.3?IEEE 802.3u?IEEE 802.3x?IEEE 802.3az
Network media: 10Base-T,cat3 or above UTP,100Base-Tx,cat5 UTP
Data rate: 10/100M
Forwarding rate: 10 Mbps / 14,880 pps ,100 Mbps / 148,800 pps
LED Indicator: Link/Act, Power, System, TX/RX
Baud rate: 3000bps~230400bps
Operation modes: VCOM,TCP Server, TCP Client, UDP, Paired-Master/Slave, Reverse Telnet, RFC2217, Disabled
Dimension: 190*91*29mm
Power Input: DC9V-23V
Power Consumption: Max3W
Environment
Operating Temperature: -40 ?-85 ?
Relative Humidity: 10%-90%(non-condensing)
Storage Temperature: -40?-85?
Relative Humidity: 5%-90%(non-condensing)
Other function: RS485 support full duplex and half duplex
Build load default key

ID: admin
Password: system
IP address: 192.168.2.1
Operation mode: VCOM mode
Baud rate: 921600bps
UART parameters: 921600,8,N,1
Local port
TCP:5004-5011
UDP:6001-6008
