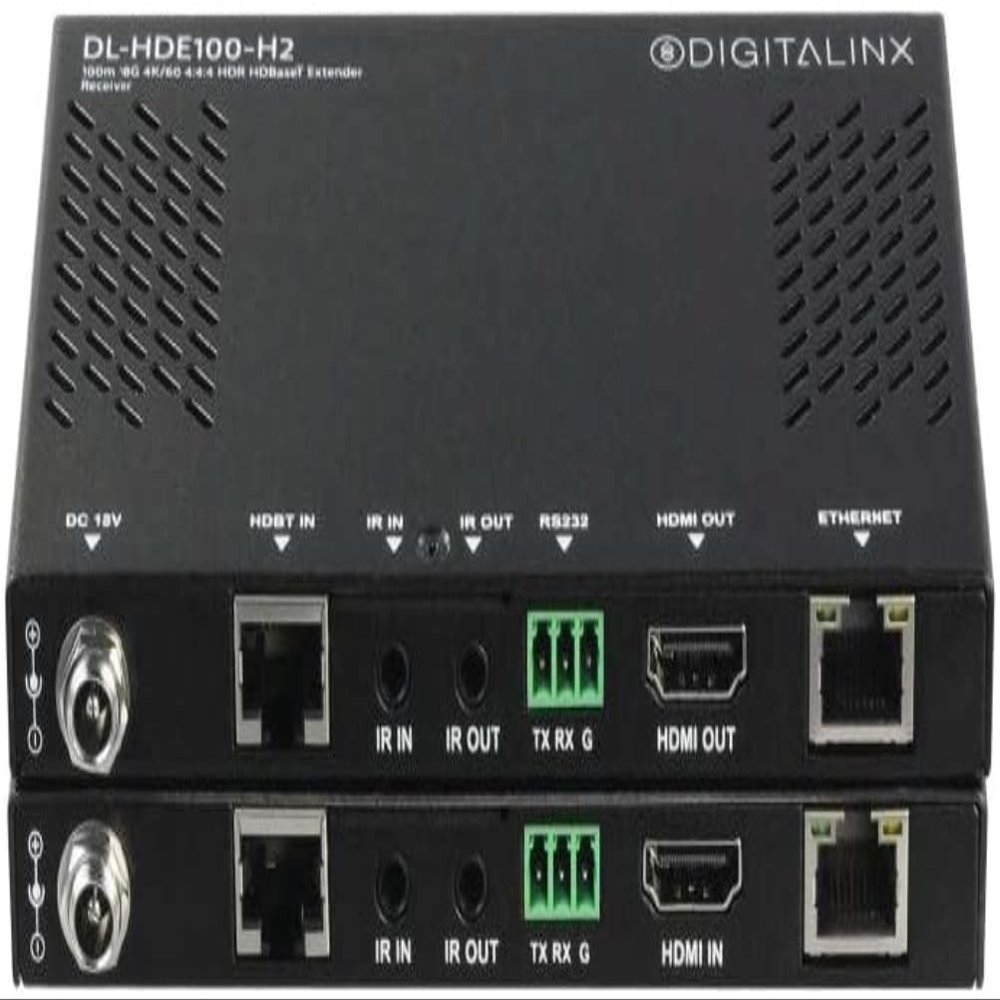

Digitalinx DL-HDE100-H2 HDMI 2.0 HDBaseT Extension Set with Control and Ethernet; Complete Set Includes TX, RX, Power Supply, and IR Flasher/Emitter; Supports HDR10; HDCP 2.2 Compliant

Description

• Extend HDMI 2.0 signals up to 4K@60Hz/4:4:4 up to 100m (4K 70m/1080P 100m)
• Extends bi-directional IR, RS232 and ethernet pass through. Flexible PoC (Power on either end)
• Flexible power design (use power supply at TX or RX)
• Includes re-clocking circuitry for maximum device compatibility
• Locking power connector (power supply included)

Digitalinx DL-HDE100-H2 HDMI 2.0 HDBaseT Extension Set with Control and Ethernet; Complete Set Includes TX, RX, Power Supply, and IR Flasher/Emitter; Supports HDR10; HDCP 2.2 compliant

The DigitaLinx DL-HDE100-H2 HDBaseT extender set transmits HDMI 2.0 audio and video, up to 4K@60Hz 4:4:4/ 8 bit color with HDR support as well as control up to 100m / 330 using a single Category 6 cable. Supports HDMI 2.0a, HDR10 and HDCP 2.2 as well as Dolby Atmos and DTS:X audio formats. Control extension supports bidirectional IR, Ethernet pass through and RS232 pass through. Built in re-clocking circuitry ensures that extender set is backwards compatible with older HDMI version chip sets. The DigitaLinx DL-HDE100-H2 can transport HDMI data rates up to 18Gbps up to 100 meters.

Key Features
- Complete set includes TX, RX, power supply, and IR flasher/emitter
- Extend HDMI 2.0 signals up to 4K@60Hz/4:4:4 up to 100m (4K 70m/1080P 100m)
- Extends bi-directional IR, RS232 and ethernet pass through. Flexible PoC (Power on either end)
- Supports HDR10
- HDCP 2.2 compliant
- Flexible power design (use power supply at TX or RX)
- Includes re-clocking circuitry for maximum device compatibility
- Locking power connector (power supply included)

Specifications
- Maximum Pixel Clock: 600MHz
- Embedded Audio: Up to PCM 8 channel, Dolby Atmos, DTS: X, Dolby TrueHD, DTS-HD Master Audio, Dolby Digital and DTS
- IR Carrier Frequency Range: 33-55kHz at 5 volts
- RS232 Baud Rate: Up to 115200 baud
- Maximum Power Consumption 17 watts (TX)/16 watts (RX)
- Power Supply Input Voltage: 100-240V AC at 50-60 Hz
- Power Supply Output Voltage: DC 12V 2A
- Surge Protection: Voltage: 1 kV
- Operating Temperature: - 0 to +45C
- Operating Humidity: TX/RX - 10% to 90%, Non-condensing
- Dimensions (WxHxD): TX / RX 5.90" x 0.62" x 3.75"
- Weight: TX/RX - 0.57 lbs
