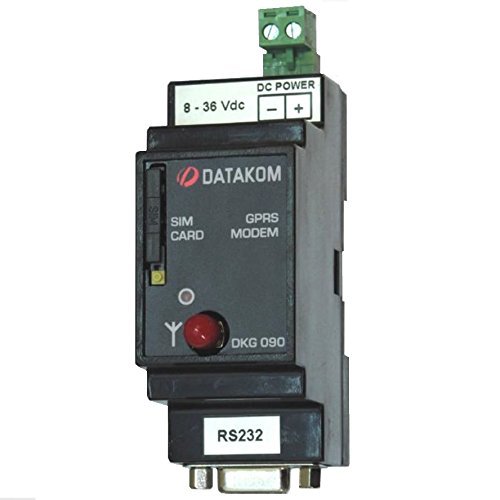

DKG-090 GPRS Modem for D-300/500L/500/700, DC Power Supply

Description

• WE DO NOT SELL THIS PRODUCT FOR USAGE IN USA AND CANADA
• Suitable for 1-3 phase gasoline and diesel gensets
• Designed for front panel mounting
• Survives cranking dropouts
• Generator protection, built-in alarms and warnings

WE DO NOT SELL THIS PRODUCT TO USA AND CANADA
DESCRIPTION:

The DKG-090 is a DIN rail mounted GSM Modem designed to be connected to various Datakom modules for internet monitoring and control through the RAINBOW SCADA monitoring system. It also supports e-mail and SMS sending.

The modem uses the 2G GPRS band. Therefore it operates anywhere, even in case of low signal strength.

The module powers-up with externally supplied 12V or 24V DC. It connects to Datakom odules through RS-232 serial port. The baud rate is automatically detected and adjustable through master modules.

The programming of DKG-090 is done through the master module. The modem itself does not require any programming and is directly compatible with all below listed Datakom modules.

D-300 Genset Controller
D-500-LITE Genset Controller
D-500 Genset Controller
D-700 Genset Controller (B&W and TFT versions
DKM-411 Network Analyzer
DFC-0124 Reactive Power Controller (all versions)

The 1800-1900MHz magnetic GSM antenna is supplied together with the modem. It has 2 meter cable and intended to be placed outside of the control panel.

The module requires a GPRS enabled SIM card for full functionality. Voice-only type SIM cards will usually not function properly.
FEATURES:
Power Supply: 8.0 to 36.0 V-DC.
Power consumption: 2W max.
Class of data transmission: Class 1, Class 4
Transmitter output power: 2W (Class 4), 1W (Class 1)
Data speed: max. 85.6 kbps (download & upload)
SIM card type: SIM 3V/1.8V, GPRS enabled
Antenna: Quad band, magnetic, with 2m cable
Module certificates: CE, FCC, ROHS, GCF, REACH
