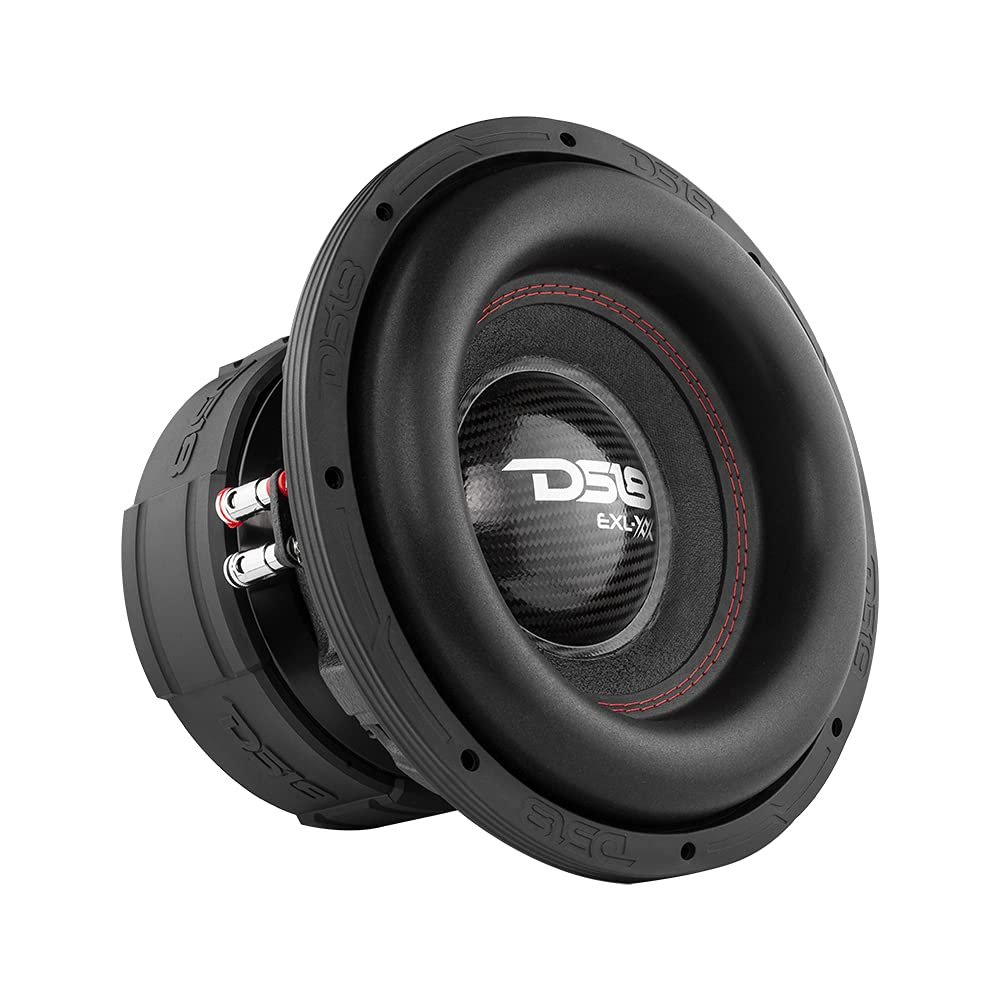

DS18 EXL-XX12.2DHE 12 High Excursion Car Subwoofer 4000 Watts Dual Voice Coil 2+2 Ohms (1 Speaker)

Description

• POWERFUL BASS YOU CAN COUNT ON - EXL-XX12.2DHE delivers impressive 4000W Max Power with 2000W RMS at Dual 2+2 Ohm, once you hear it you'll finally realize what big, rich bass sounds like.
• DUAL VOICE COIL (DVC) - Provides multiple options and flexibility to wire Parallel, Series, or Independent.
• UNMATCHED ENGINEERING - The EXL series of subwoofers come with Three-inch black aluminum voice coil for high power handling and great efficiency to ensure top quality.
• FS of 39 hz so you can easily dip in the subsonic range with no issues along as your box is tuned accordingly.
• NEVER STOP INNOVATING ATTITUDE - DS18 stands out from other brands with our progressive designs and unwavering commitment to delivering the most technologically up-to-date products on the market

DS18 EXL-XX12.2HEHigh excursion is now the standard in all big bass applications and we want to bring the experience of low frequency bass and high power to every user at a great price point. The EXL-XX12.2HE is the answer to that. This subwoofer is a high tier addition that comes in at an amazing price point while getting all those features other much more expensive high excursion subs come with. Specifications Nominal Diameter 12 Nominal Impedance 2+2 ohms RMS Power Handling 2000W MAX Power Handling 4000W Sensitivity (1w/1m) 87 dB Frequency Response 20-1.3KHz Recommended Lo Pass Crossover 80 Hz Motor: VC Diameter 3 / 75.6mm VC Former Material Black Aluminum Winding Material CCAW Cone Material Paper Dust Cap Material Glass Fiber Surround Material Foam Basket Material Aluminum Basket Color/Finish Black Magnet Material Ferrite Magnet Weight 306 Oz Displacement Volume 3.26L Thiele & Small Parameters Equivalent Vol Vas 21.986L Excursion(one way) Xmax 42 mm Free Air Resonance Fs 39.8 Hz Mechanical Factor Qms 5.128 Electrical Factor Qes 0.529 Total Factor Qts 0.468 Moving Mass Mms 302.158 g Compliance Cms 0.025 mm/N Bl Factor BL 16.523 VC Inductance Le 6.9 mH Diaphragm Area Sd 433.74 cm Dc Resistance Re 2 + 2 ohms Efficiency Bandwidth Product EBP 75.2 Measurements Overall Diameter 12.63 / 321mm Overall Depth 9.25/235mm Front Mount Baffle Cutout 11.1 / 282mm Mounting Depth 7.87 / 200mm Motor Diameter 8.89 / 226mm
