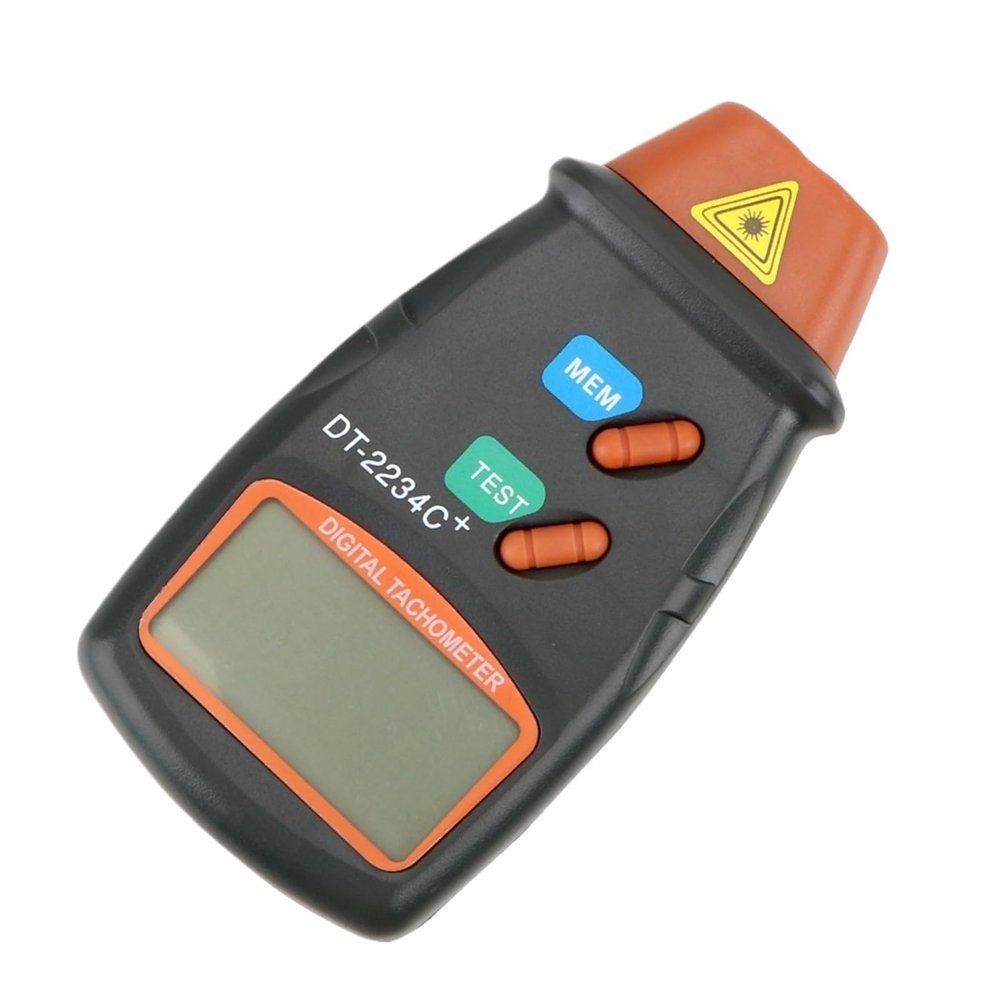

DT2234C+Laser Speed Infrared Motor Tachometer Engine Speed Measuring Instrument Motor Speedometer(2234C-yellow Button)

Description

• Motor Drives
• DT2234C+laser speed infrared motor tachometer engine speed measuring instrument motor speedometer

Motor Drives
Non contact laser tachometer DT-2234C+
The tachometer is one of the commonly used instruments in the mechanical industry, used to measure the speed and linear velocity of a motor. It can accurately measure the rotational speed of impeller blades, drums, and shafts, and is widely used in industries such as motors, fans, washing machines, textiles, automobiles, airplanes, ships, etc.
Function description:
Test range: 2.5RPM to 99999RPM (revolutions per minute)
Resolution: 0.1RPM (revolutions per minute) (2.5-999.9RPM) 1RPM (revolutions per minute) (over 1000RPM)
Measurement accuracy: (0.05%+1 word)
Sampling time: 0.8 seconds (above 60 RPM)
Effective measurement distance: 50mm~500mm (laser )
Time base: 6MHz quartz crystal oscillator
memory function
Range selection: automatic switching
Power supply: Single 6F22 9V battery (not included, does not support rechargeable batteries)
Power consumption: approximately 35mA
DT2234C+laser speed infrared motor tachometer engine speed measuring instrument motor speedometer
