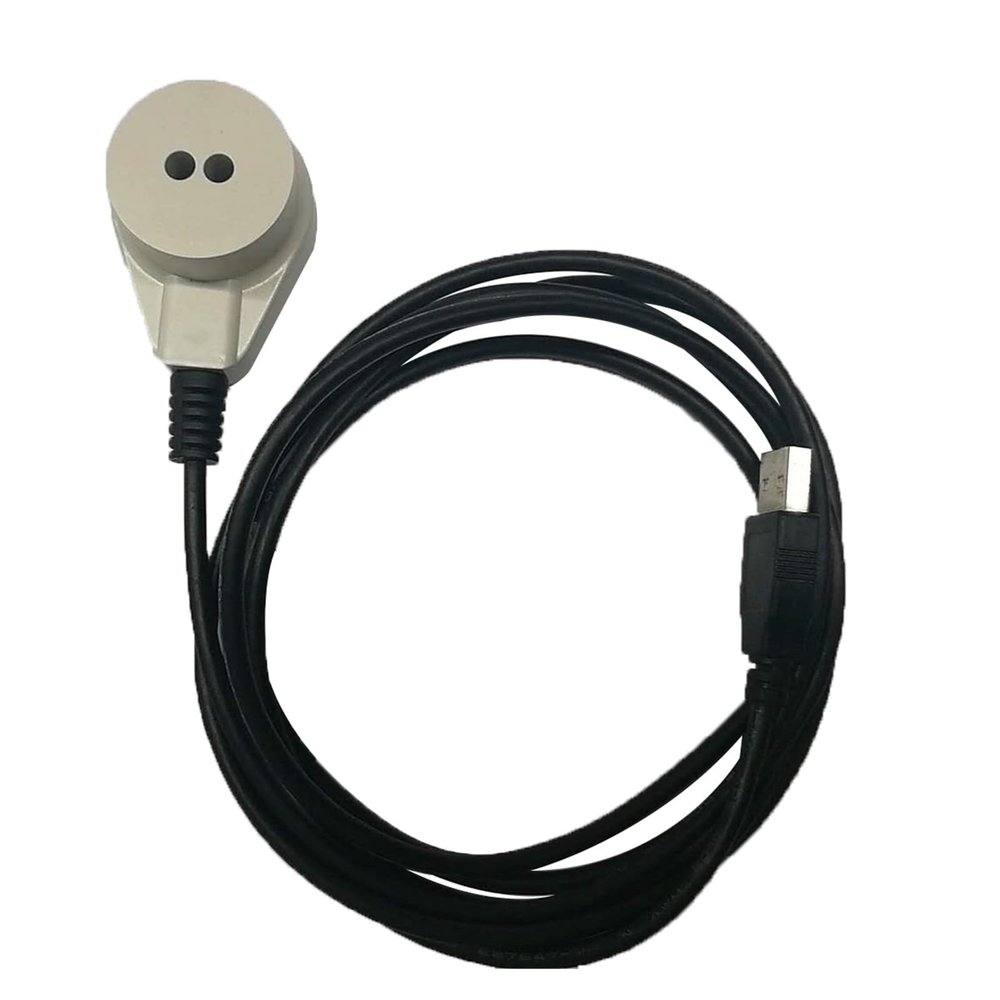

DUYHGS CP2102 USB to Far Infrared Converter Adapter 38KHz Modulation IRDA Meter Reading, Far Infrared Communication(1.5M)

Description

• CP2102 USB to Far Infrared Converter Adapter 38KHz Modulation IRDA Meter Reading, Far Infrared Communication

Application: Data collection of electric energy meters, gas meters, water meters
New CP2102 imported chip, USB interface power supply, no need Fit For external power supply.

Support multiple versions of Windows operating system, MacOS, Linux and other systems.
Infrared head size: diameter 32mm,transmitting and receiving distance: 6.5mm (size is Fit For reference only, tolerance 2mm)
Modulation frequency: Modulation and demodulation signal frequency: 38KHz

Communication parameters: communication baud rate supports 300-2400bps

Communication distance and angle: 5m, 15
IEC standard industrial grade, the converter adopts CP2102 chip, 15KV ESD protected transceiver circuit, Taiwan Everlight industrial-grade optical receiver/transmitter.
Transparent transmission, supported full protocol signal conversion, such as IEC62056-21, IEC1107, DLMS, MDBUS, etc. The transmission rate is: 300/600/1200/2400/4800/9600/19200bps.
Installation: 25mm * 15mm * 5mm galvanized ma~net, strong ma~netic adsorption (IEC62056 regulation), it is easy to fix on the optical interface device.
Environment: specified working range -25-70.
