EBYTE

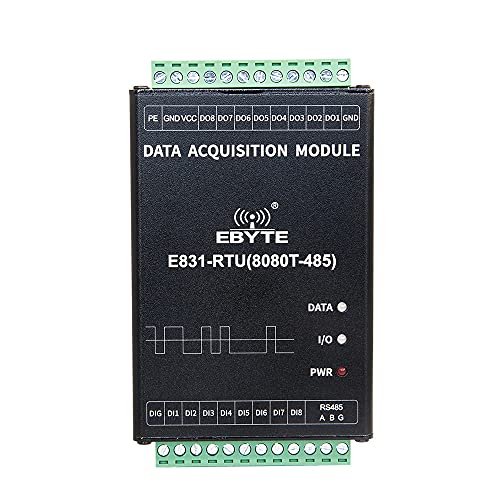

E831-RTU(8080T-485) Modbus RTU IO Controller 8 Channel Digital Quantity Input Relay Output Wireless IoT Modem
A$266.02
A$443.38
-
Order within 1 hour and 58 minutes to get between June 11 - June 17 -
Tracked Shipping on All Orders
-
14-Day Returns
- Secure Payments
-
24/7 Customer Support
Description
- Hardware watchdog with high reliability; Multiple indicators show operating status; Power supply has good functions such as over-current, over-voltage, and anti-reverse connection; Wide voltage input 8V-28V, 12V or 24V is recommended;
- Support 8 digital isolated inputs,default dry contact; 8 digital outputs (NPN transistor electrode open collector output)adopts Modbus RTU protocol data processing;
- Support command reset. After sending AT + RESTORE r n instruction to 485 serial port within 3s after power-on, Modbus device address, RS485 serial port baud rate and parity bit are restored to factory settings; Support pulse counting, can be configured as rising edge counting, falling edge counting, level counting method
- Users can customize functions, such as condition control(determining how to output based on input status)
- Warranty: We have 1 year warranty. If you need user manual or any problems contact with us free.
[Transmission Type]?Digital quantity
[Interface]?RS485
[I/O channel] : 16-channel
[Weight]?2565g
