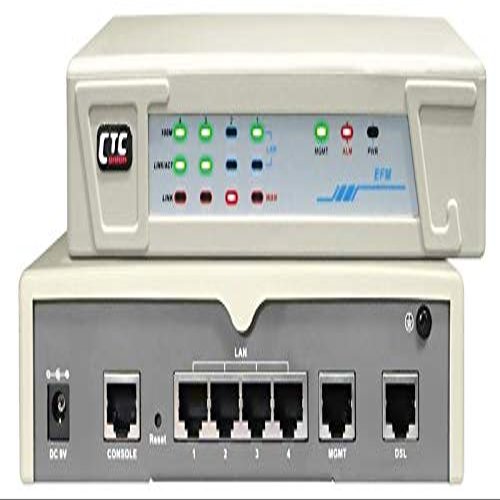

EFM-10 G.shdsl.bis 2-Wire LAN Extender - 5.7Mbps Ethernet Bridge Modem - up to 4.9mi Loop Length on 26 AWG Wires

Description

• WAN Interface: RJ45 8 pins, SHDSL.bis ITU-T G.991.2 Annex AF/BG, encoding 16-TCPAM, 32-TCPAM, 2BASE-TL, 64/65 octet encoding, EFM bonding (802.3ah PAF), 5.7Mbps rate per pair of copper line, 135ohms impedance
• LAN Interface: 4 port 10/100Base-TX switch w/ auto MDI/MDI-X, 802.1d transparent bridging
• VLAN features: 802.1q and port-based VLAN support, Q-in-Q VLAN support, VLAN Trunk mode
• Management: web-based GUI, CLI interface for console and telnet access, SNMP v1/v2 agent (RFC 1157/1901/1905), MIB II support (RFC 1213/1493), EFM OAM support (IEEE 802.3ah), software upgrade via web or TFTP
• Operating distance: up to 8Km on AWG 26 copper wire (max speed 5.7Mbps)

Important note: Although photo is showing two stacked units, price is per unit. You will need to purchase two units to have a working pair. Product description The EFM-10 is an Ethernet Network Extender using bonded G.shdsl.bis technology over copper wires. Unit supports EFM (Ethernet First Mile) 2Base-TL technology. EFM-10 uses the 802.3ah management protocol, making it a very powerful unit for service providers and providing all needed mass deployment features. EFM-10 has a 4 port Ethernet switch with advanced VLAN and QoS capabilities. Management includes web-based interface, SNMP, telnet CLI interface and local console port. The EFM-10 can provide 5.7Mbps of data throughput on a 2 wire AWG26 copper line and can be used in point to point connections. Technical specifications WAN Interface: RJ45 8 pins, SHDSL.bis ITU-T G.991.2 Annex AF/BG, encoding 16-TCPAM, 32-TCPAM 2BASE-TL, 64/65 octet encoding, EFM bonding (802.3ah PAF), 5.7Mbps rate per pair of copper line, 135ohms impedance LAN Interface: 4 port 10/100Base-TX switch w/ auto MDI/MDI-X, 802.1d transparent bridging QoS features: Ingress Rate control/ Egress Traffic shaping, 4 port Priority Queue, WRR (Weighted Round Robin)/BE (Best Effort)/ SP (Strict Priority) policies VLAN features: 802.1q and port-based VLAN support, Q-in-Q VLAN support, VLAN Trunk mode Management: web-based GUI, CLI interface for console and telnet access, SNMP v1/v2 agent (RFC 1157/1901/1905) MIB II support (RFC 1213/1493), EFM OAM support (IEEE 802.3ah) software upgrade via web or TFTP Memory: 2Mb FLASH memory, 4Mb SDRAM Operating distance: up to 8Km on AWG 26 copper wire Front LEDs: PWR, Alarm, Mgmt, Wan Act/Link, LAN Act/Link/Speed Power: External 90-260V AC switching adapter 9VDC@1A with NEMA1-15(2 blades only), US type main plug Consumption: 9 Watt maximum Temperature: 0-50C (Operating); 0-70C (Storage) Humidity: 10-90% non condensing (Operating); 0-70% (Storage) Dimensions(WxDxH): 168mm x 195mm x 48mm MTBF: 35,000 hours
