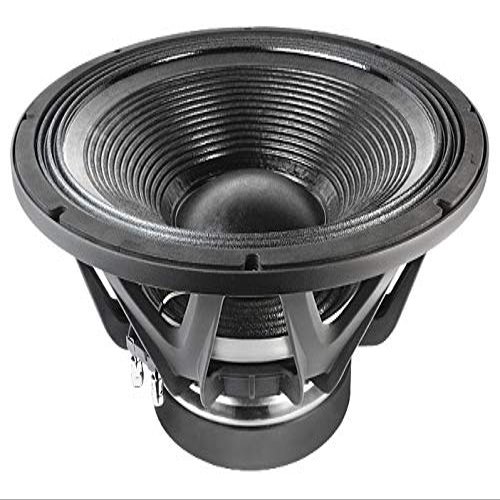

Faital 18HW1070 18 Inch Woofer 8 ohm

Description

NOMINAL SPECIFICATIONS Nominal Diameter: 460 mm (18 in) Overall Diameter: 460 mm (18.11 in) Bolt Circle Diameter: 440 mm (17.32 in) Baffle Cutout Diameter: 422 mm (16.61 in) Depth: 223 mm (8.78 in) Flange and Gasket Thickness: 14 mm (0.55 in) Net Weight: 14.7 Kg (32.4 lb) TECHNICAL PARAMETERS Nominal Impedance: 8 Ohm Minimum Impedance: 6.5 Ohm AES Power Handling: 1600 W Maximum Power Handling: 3200 W Sensitivity: (1W/1m)97 dB Frequency Range: 30-1500 Hz Voice Coil Diameter: 100 mm (4 in) Winding Material: Cu Former Material: Glass Fiber Winding Depth: 31 mm (1.22 in) Magnetic Gap Depth: 15 mm (0.59 in) Flux Density: 1.1 T Magnet: Ferrite Ring Basket Material: Aluminum Demodulation: Triple Al Dem. Ring Cone Surround: Triple Roll NET Air Volume filled by Loudspeaker: 7.4 dm^3 (0.261 ft^3) Spider Profile: 2x non-adjacent symmetrical constant height waves
