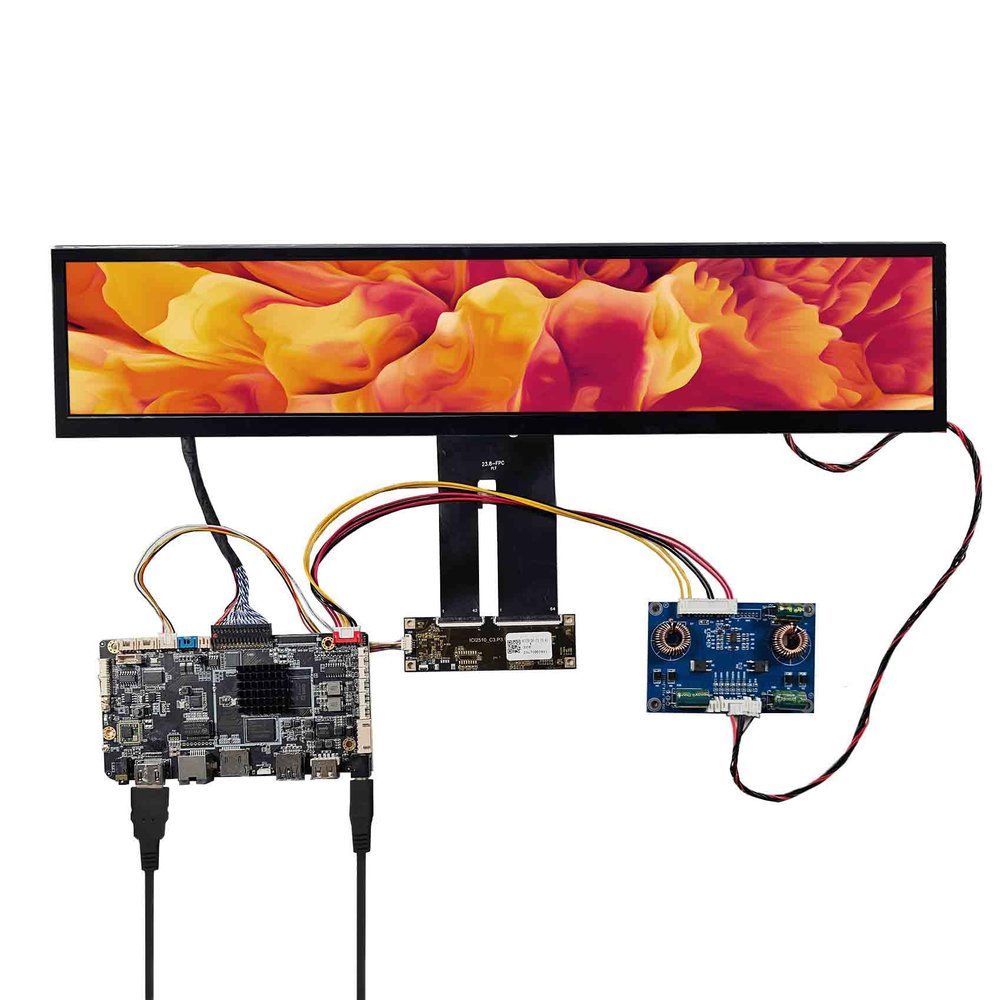

FanyiTek 24 inch 1920x360 DV240FBM-NB0 IPS Capacitive Touch Sensor Panel Stretched Bar LCD Screen and Android 11 Board,Support Autoplay,Autocopy,360 Degree Rotation

Description

• 24 inch 10 Point Multi-touch IPS DisplalyWith a resolution of 1920x360 and a brightness of 300 nits, this screen offers a sharp and vivid color display. The IPS technology allows for a wide viewing angle, providing the user with an optimal viewing experience from any angle.Outline Size 612.7 132.110.2 (HVD)mm,Display Area 579.888112.104 (HV)mm.
• LCD Driver Board Video input: USB SD ,Audio Output: Speaker (8ohm 2W 4Pin PH2.0 Connection ).Please use in insulated environment.Input power:12V DC more than 3A,port size :5.5x2.1mm (power adapter not included in package) .
• 10 Points Multi-Touch Sensor Panel:With capacitive touch sensor panel ,no need enter driver ,directly plug the USB touch cable ,then the touch panel can work normally,this function provides responsive and intuitive user input.
• Extensive applications: The high-quality specifications make it ideal for a range of applications. It can be used for gaming marquee, media consumption, video editing, graphic design, advertising ,supermarket sshelf ,and more. Additionally, its touch screen functionality makes it great for interactive presentations and kiosks.
• Plug and playNo software required. Connect cables as the link picture,then power on with 12V DC more than 3A power supply ,enter into the ,then the screen can work well .Pls make sure the screen and board are used in insulated environment .

Android LCD Controller Board:

Android 11 Board Compatible With OpenGL ES 1.1/2.0/3.2OpenCL 2.0 Vulkan 1.1

CPU: RK3566 UP to1.8GHz

GPU: Mali-G52-2EE

NPU: 0.8T

Memory: 2G LPDDR4X/LPDDR4

Built-in Memory: EMMC16G/32G

Decoding Resolution: 1080P/H.265(4K2K)

Operating System: Android 11

USB: 5 x USB2.0 1 x USB3.0

H/DUp to 3840x2160 eDPUp to 1920x180

LVDSUp to 1920x180 MIPIUp to 2560x1440

Audio Output: Speaker 8R/2W

Serial Port3 x TTL 1 x Debug 1x RS232

Input Power Adapter: 12Vdc more than 2A

Come In Standby Model When Not Input Signal

Standby Model <0.5W

Board Size: 142mm x 75mm x 16mm

24" DV240FBM-NB0 1920x360 Capacitive Touch LCD Screen:

Display Mode IPS, Normally Black, Transmissive

Resolution 1920RGB)360

Outline Size 612.7 132.110.2 (HVD)mm

Display Area 579.888112.104 (HV)mm

Brightness 300 cd/m (Typ.)

Contrast Ratio 1200:1 (Typ.) (TM)

Viewing Angle 89/89/89/89 (Typ.) (CR10) [Left / Right / Up / Down]

Interface LVDS (1ch 6bit) Connector 40Pin

Backlight WLED

Input Voltage 3.3V (Typ.)

Packing list:

1 Android 11 LCD Controller Board

1 24" DV240FBM-NB0 1920X360 Capacitive Touch LCD Screen

1 Converter Board

1 LVDs Cable

1 Keyboard With Cable
