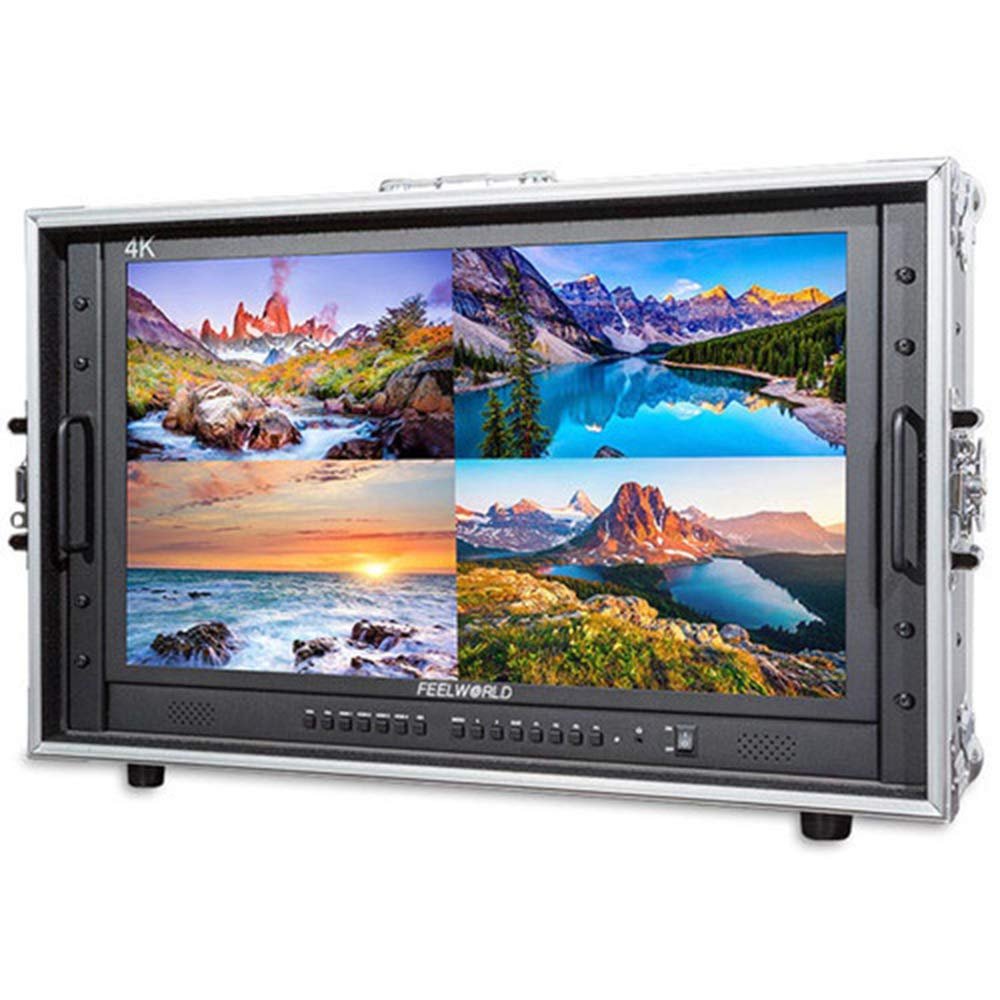

FEELWORLD 4K280-9HSD-CO 28" 4K Quad View Carry-On Broadcast Studio Video Monitor 38402160 3G SDI 4K HDMI IPS Full HD 8 Bit for Professional Live Event Post Production Director Film Camera Field

Description

• 28 Inch Full HD (38402160) Resolution, 28" LCD monitor delivers an immersive 4K experience for images and video, bring unbeatable image clarity in cinematic display.
• High Efficiency OSD Operation Design,Built-in LED tally indicators (Red, Green, Yellow).
• Special Features: Quad Split Display (1P, 2P LR, 2P TB, 2P PIP, 4P), Peaking Focus Assist, Overscan, Display Rotate (0, 90, 180, 270), Check Field (Red, Green, Blue), Image Freeze, Zoom, Aspect Ratio (Full Screen, 16:9, 4:3, 1:1), Center Marker, Screen Marker (80%, 85%, 90%, 93%, 96%), Line Color (Red, Green, Blue, White).
• Multiple inputs:3G-SDI / HDMI / YPbPr / Video / Audio(L/R) / DVI-I, outputs: 3G-SDI / HDMI / YPbPr / Video, audio: 3.5mm stereo headphone jack / build-In speaker
• Standard Accessories:3A DC Power Adapter, V Battery Plate, Mini HDMI Cable, Tally Kit, Sunshade, U bracket, Operation Manual. Power using included 12-volt supply or use standard 4-pin XLR

Video
1 x HDMI Type A (HDMI 2.0) Input
3 x HDMI Type A (HDMI 1.4) Input
1 x BNC (3G-SDI) Input
1 x DVI-I Input
1 x DE-15/DB-15 (VGA) Input
1 x BNC (3G-SDI) Output
Embedded Audio: HDMI SDI
Audio
1 x 2RCA Input
1 x 3.5 mm Headphone Output
Built-In Speaker: 2

Power
1 x 4-Pin XLR Input
Other I/O
1 x Tally (DE-9/DB-9)

Format Support
Video Format:
HDMI
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50
1080PsF: 24/23.98
720p: 60/59.94/50/30/29.97/25/24/23.98
576p
480p
576i
480i
SDI
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
1080PsF: 24/23.98
720p: 60/59.94/50/30/29.97/25/24/23.98
576i
480i

Power
DC Input Power: 12 to 24 VDC
Battery Type: 1 x V-Mount
Power Consumption: 45 W (Maximum)

Environmental
Operating Temperature: 14 to 122F / -10 to 50C
Storage Temperature: -4 to 140F / -20 to 60C

General
Dimensions (W x H x D): 28.74 x 16.14 x 1.54" / 73 x 41 x 3.9 cm 30.71 x 18.5 x 9.84" / 78 x 47 x 25 cm, Including Case
Weight: 47.84 lb / 21.7 kg, Including Case

Packaging Info
Package Weight: 51.3 lb
Box Dimensions (LxWxH): 32.5 x 21 x 12"
