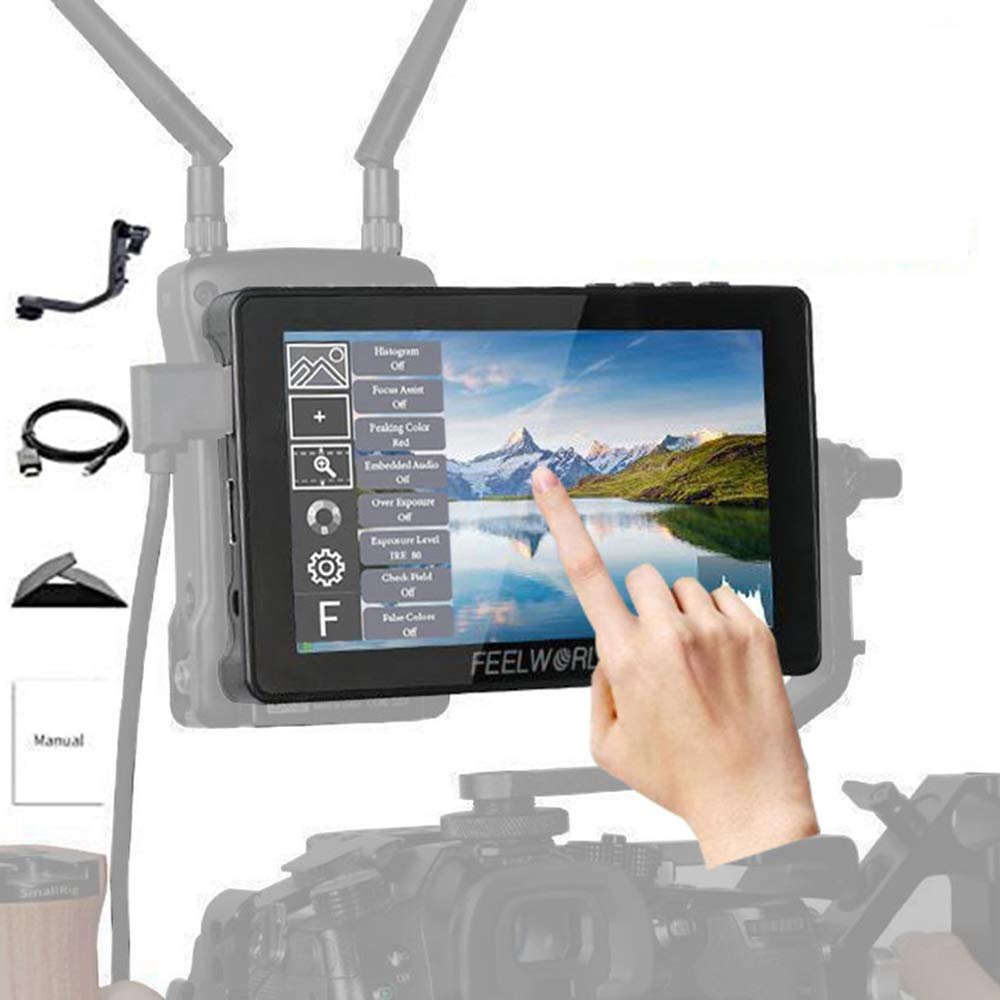

FEELWORLD F5 Pro V2 5.5 Inch Touch Screen DSLR Camera Field Monitor 3D LUT 4K HDMI Input Output Tilt Arm Power Output F970 Install and Power Kit to External Wireless Transmission LED Light

Description

• [Simple touch screen control, free to zoom in/out] Full touch screen control allows you to easily and intuitively zoom in/out the lens by pinching the zoom gesture. The built-in display is also an interactive touch screen. With all the features at hand, you can change feature settings with a simple tap and swipe gesture. If you need to turn off the touch screen function to prevent misuse, you can turn it off with the menu setting function.
• [5.5 inch LCD, 1920x1080 resolution 3D LUT] FEELWORLD F5 Pro DSLR camera field monitor 5.5 inch LCD, 1920x1080 resolution, high resolution, full of bright colors. F5 Pro V2 allows you to load internally up to custom LUTs (Up to 32 user files can be imported), looks or profiles at any time via the TYPE-C interface to USB . Slot and instantly select between them, maintaining creative intent, always.
• [Lightweight design, easy to install] The Feelworld F5 PRO has high-end surveillance features in a small, lightweight package that connects to almost any camera. On the back of the monitor is an additional F970 external installation and power kit design. Used to install and install external devices that can be powered by the F970 battery, such as wireless transmitters, LED lights, video converters, etc.
• [Massive power support] DC 12V power supply (outer 5.5mm, inner 2.1mm), Sony "NP-F" series battery power supply is supported. It also supports 5V Type-C input, which can be powered from a mobile phone charger or power bank. (Note: The 5V Type-C port is used for power only, it is not used for data transmission and cannot provide loopout power.
• [Twice as convenient and fast operation] Feelworld F5 PRO has video image analysis functions such as focus assist, histogram, false color, zebra exposure, aspect ratio, image flip, 9 grid, zoom, distortion, image flip and safe zone. Not only can you view it, you can also integrate it. Better monitoring with 360 tilt arm, 360 tilt bracket, LED light application can be extended, can be installed on the microphone.

* High Resolution: Full HD 1920x1080,High Contrast: 1000:1, High Brightness: 500cd/m, 160 wide viewing angles IPS Panel
*This innovative external power supply design reduces the need for photographers to connect to external wireless transmission, LED light and other equipment
*Support 3D LUT Log to Rec.709, user 3D LUT Upload
* Provides auxiliary power out; allowing shooters to power their cameras
* Histogram
* Peaking Focus Assist (Red,Green,Blue three colors optional highlight over parts of the image in focus)
* False Colors
* Zebra Exposure
* Nine Grid
* Scan Mode (Under Scan, Over Scan)
* Zoom (4x,9x,16x)
* Anamorphic Mode (1.3x, 2.0x, 2.0x mag, User-defined adjustment: 1.20X~2.00X)
* Pixel to Pixel
* Center Marker
* Safe Area (80%,85%,90%,93%,96%,2.35:1)
* Ratio marker (4:3,13:9,14:9,15:9,16:9,1.85:1,2.35:1)
* Marker Color (Red,Green,Blue,White,Black
* Check Field (Red/Green/Blue/Mono)
* Image Flip (H, V, H/V)
* Image Freeze
* Zoom All (0~100 adjustable)
* U/D & L/R Zoom (0~100 adjustable)
* Color Temperature Adjustment

Input
1 X HDMI HDMI
1 X Type-C 5V Type-C

Output
1 X HDMI HDMI
1 X DC Output DC Output
Audio
Audio Stereo Headphone

HDMI Input/ Output Support Format
480i/576i/480p/576p
1080i (60/59.94/50)
720p (60/59.94/50/30/29.97/25/24/23.98)
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
4K UHD 38402160p (30/29.97/25/24/23.98Hz), 40962160p (24Hz)
General
Input Voltage DC724V
Power Consumption 9W
Power Connector DC
Working Temperature -20C~50C
Storage Temperature -30C~60C
Install Way -20 thread points
Unit Size 148Lx93Hx20D (mm)
Unit Weight 245g
