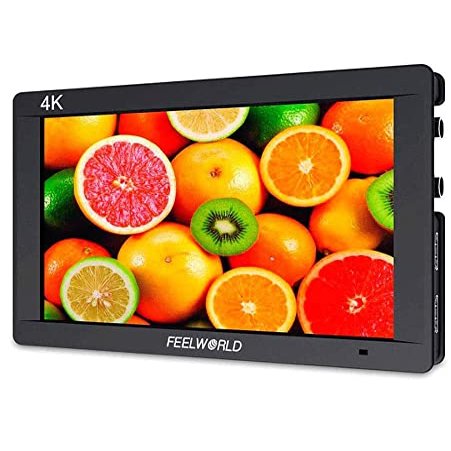

FEELWORLD FW703 7inch 4K HDMI On Camera Video Field Monitor Ultra Slim IPS Full HD 1920x1200 with Peaking Assist 3g-sdi DSLR External Display

Description

• The Feelworld FW703 supports 4K UHD 3840*2160P with Full HD 1920x1200, High Resolution and impressive 323 PPI. blending individual pixels to the point that the naked eye cant define individual pixels.
• More Auxiliary Functions: FW703 integrated histogram, embedded audio, false color, exposure, check field, nine grid and zoom in professional functions, assist users to accurately exposure and focus when shooting, making and playing movies/ videos.
• High Quality: As the camera operators may shift his/her position relative to the monitor during the shot. FW703 IPS 160wide viewing angle
• Specially designed to merge portability, and functionality, 22mm thickness 320g the FW703 gives you freedom to shoot well anywhere. See your picture accurately, consistently and clearly, regardless of your position.
• Broadcast quality 3G-SDI, 4K HDMI monitoringuse pro or consumer cameras The compact design of the FW703 includes 3G-SDI and 4K HDMI input/ output, USB Upgrade, 3.5mm Ear Phone Slot, Built-in Speaker.

Model: FW703
Screen Size: 7" IPS
Resolution: 1920x1200 pixels
Pixel Pitch: 0.07875 (H) x 0.07875 (W) (mm)
Aspect Ratio: 16:10
Brightness: 450cd/m
Contrast Ratio: 1200:1
Backlight: LED
Viewing Angle: 80/80(L/R) 80/80(U/D)

Input
1 X 3G-SDI
1 X HDMI

Output
1 X 3G-SDI
1 X HDMI

Audio
Audio: Stereo Headphone, Speaker

SDI Support Format
480i/576i
720p(60/59.94/50/30/29/25/24/23.98)
1080i(60/59.94/50)
1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)

HDMI Input/ Output Support Format
480i/576i/480p/576p
1080i (60/59.94/50)
720p (60/59.94/50/30/29/25/24/23.98)
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
4K UHD 38402160p (30/29.97/25/24/23.98Hz), 40962160p (24Hz)

General
Input Voltage: DC6.524V
Power Consumption: 9W
Working Temperature: -20C~55C
Storage Temperature: -30C~65C
Install Way: 1/4"-20 Thread Socket (bottom)
Battery Plate: F970 (Standard); D28S/D54, LP-E6, U60 (Optional)
Unit Size: 180Lx120Hx22D (mm)
Unit Weight: 320g/350g (With F970 Battery Plate)
Note: When you turn off the monitor, you need to press the power button, and you can't pull out the power cable directly.

Advanced Features
* Brightness Histogram
* Embedded Audio
* Peaking Focus Assist (Red, Green, Blue three colors optional highlight over parts of the image in focus)
* False Colors
* Zebra Exposure (1-100IRE adjustable)
* Check Field (Red, Green, Blue, Mono)
* Scan Mode (Under Scan, Over Scan)
* Anamorphic Mode (1.3x, 2.0x, 2.0x mag)
* Image Flip (H, V, H/V)
* Image Freeze
* Center Marker
* Screen Marker (80%,85%,90%,93%,96%, 2.35:1)
* Ratio marker (4:3,13:9,14:9,15:9,16:9,1.85:1,2.35:1)
* Color Temperature Adjustment
* Nine Grid (Nine Grid Zoom: zoom one of the images to realize the full screen)
* Zoom (4X, 9X, 16X)
* Aspect Ratio
* Pixel to Pixel
* Zoom All
* U/D Zoom
