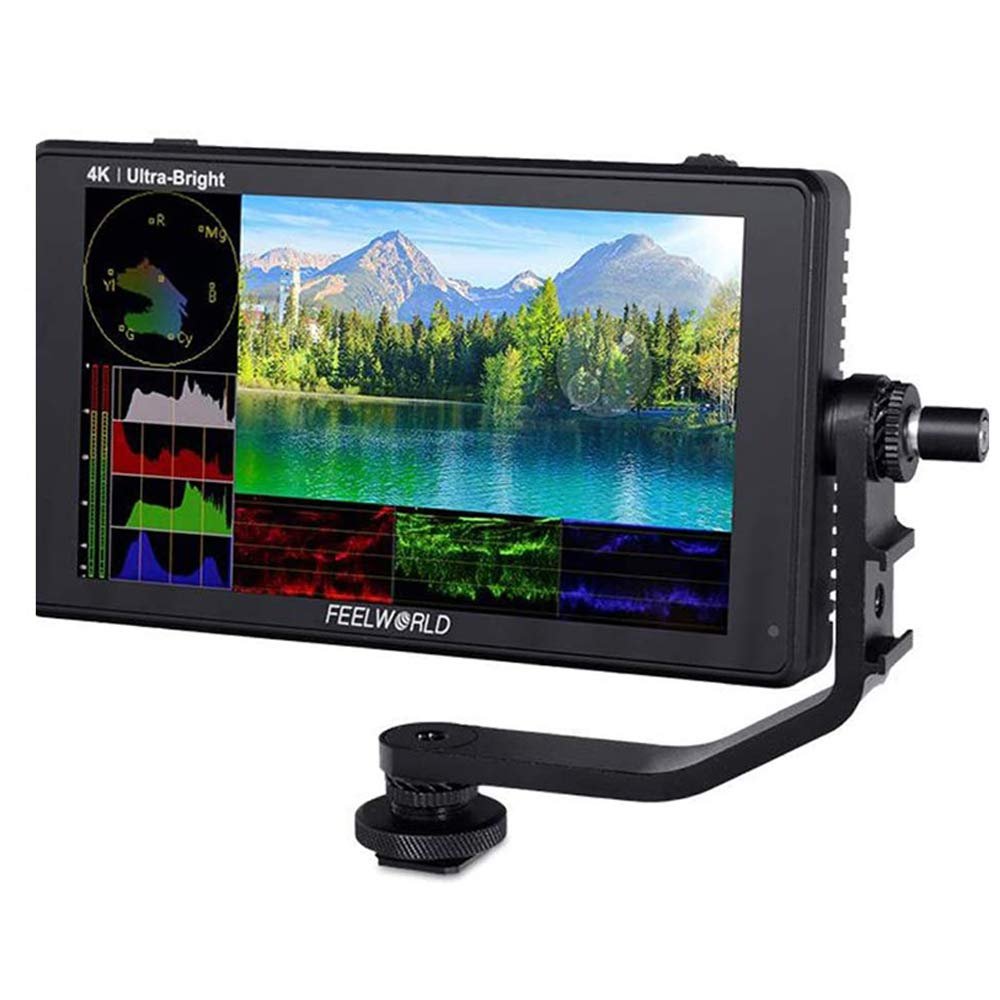

FEELWORLD LUT6S 6 Inch Field Monitor Ultra Bright 2600nit Touchscreen On-Camera Monitor with HDR 3D Lut Waveform VectorScope Histogram 3G-SDI 4K HDMI Input Output 1920X1080 IPS Panel

Description

• Large Monitor with Easy Touch ControlsThe innovative touchscreen LCD user interface provides incredible control. You can uses simple tap and swipe gestures for the important monitoring functions. Scopes can be enabled via the touch screen as well as focus and exposure assist. There's also an extensive range of settings all controlled from the large LCD. Plus you can load 3D LUTs!
• Accurate waveform monitoringWhen you need to analyze image quality more accurately than simply looking at the picture then use LUT6S's built in waveform monitoring! Choose from waveform (RGB Parade, YUV Parade, Y Parade), vectorscope, histogram and audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals.
• 2600nit Super Bright ViewableThe fully adjustable 2600nits screen is incredibly bright, making it perfect for shooting indoors or out. The high bright 2600nits screen is at almost 5 times the brightness of conventional field monitors, lets you shoot outdoors without reflections washing out your image. This makes it easy to see outdoors without a hood, making it easy for outdoor shooting in bright daylight!
• Trust What You See The professional tools are extremely helpful to your filming, like waveform, RGB parade, vectorscope, RGB histogram, histogram, audio meter, focus peaking, zoom, zebra, false color, frame guides, safe area, etc. Scopes for accurate exposure and focus.Built-in the fanThe back of the monitor have the fan that automatic heat dissipation according to backlight brightness. Under "auto", if the backlight brightness is greater than 80, the fan will turn on automatically.
• Ideal Camera Partner Includes 4K HDMI and 3G-SDI, you can connect any DSLR, camcorders or professional camera. Convenient Mounting The outer frame features standard 1/4" mount points on the bottom, left and right can be use tilt arm for attaching it to cameras and rigs. 360rotation of Tilt Arm can be get the best viewing angle and easy mount for accessories like microphones, video lights.

Model: LUT6S
Screen Size: 6" IPS
Resolution: 1920x1080 pixels
Pixel Pitch: 0.069 (L) x 0.069 (W) (mm)
Aspect Ratio: 16:9
Brightness: 2600cd/m
Contrast Ratio: 1000:1
Backlight: LED
Viewing Angle: 80/80(L/R) 80/80(U/D)

Input
1 X BNC: 3G-SDI
1 X HDMI: HDMI

Output
1 X BNC: 3G-SDI
1 X HDMI: HDMI
1 X DC: Barrel (3.5mm outer, 1.1mm inner) barrel output for powering cameras via camera specific adaptor.

Audio
Audio: 3.5mm Stereo Headphone

Advanced Features
* Support 3D LUT Log to Rec.709, user 3D LUT Upload
* Support Touch Menu
* Support HDR monitoring
* Parade (RGB, YUV, Y)
* All Waves
* Vector
* RGB Histogram
* Brightness Histogram
* Embedded Audio
* Peaking Focus (red, green, blue, white, yellow five peaking colors optional; 1~10 peaking level adjustable)
* False Colors
* Zebra Exposure (1%~100% adjustable)
* Check Field (Red, Green, Blue, Gray)
* Scan Mode (Under Scan, Over Scan)
* Anamorphic Mode (1.25x, 1.33x, 1.5x, 2.0x, 2.0x mag)
* Image Flip (H, V, H/V)
* Image Freeze
* Center Marker
* Safety Marker (70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1)
* Ratio Marker (16:9, 16:10, 4:3, 1.85:1, 2.35:1)
* Marker Color (red, green, blue, white, black, yellow)
* Color Temperature Adjustment
* Nine Grid
* Zoom (100%~300%)
* Aspect Ratio
* Pixel to Pixel
