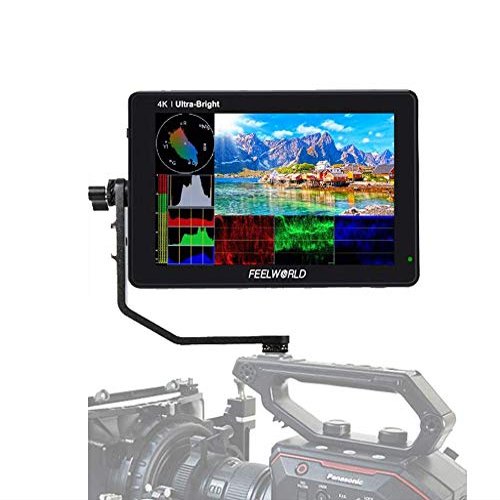

FEELWORLD LUT7S 7" 3D LUT 4K HDMI and SDI Monitor 2200nits Touch Screen DSLR Camera Field Monitor with Waveform VectorScope Histogram

Description

• Large Monitor with Easy Touch Controls The innovative touchscreen LCD user interface provides incredible control. You can uses simple tap and swipe gestures for the important monitoring functions. Scopes can be enabled via the touch screen as well as focus and exposure assist. There's also an extensive range of settings all controlled from the large LCD. Plus you can load 3D LUTs! The back of the monitor features a dual L-series/NP-F970 battery plate to provide ample power.
• Accurate waveform monitoringWhen you need to analyze image quality more accurately than simply looking at the picture then use LUT7S's built in waveform monitoring! Choose from waveform (RGB Parade, YUV Parade, Y Parade), vectorscope, histogram and audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope
• 2200nit Daylight ViewableThe 7" 1920 x 1200 monitor not only has the resolution and pixel density to make every shot look amazing, the high bright 2200nit screen at almost 4 times the brightness of conventional field monitors lets you shoot outdoors without reflections washing out your image. This makes it easy to see outdoors without a hood, making it easy for outdoor shooting in bright daylight!
• Light Sensor for Auto DimmingAnd LUT7S has an ambient light sensor that detects ambient light levels and automatically adjusts the screen brightness. It ensures that the screen is readable in different environments and always protects your eye. Increasing the screen brightness compensates for bright sunlight when used outdoors, while a dimmer screen is more comfortable on the eyes when viewing in the dark.
• 3G-SDI and 4K HDMI Loop-outThe LUT7S has 3G-SDI, 4K HDMI in and loop-out, allowing it to not only display live signals, but also send them out to other monitors simultaneously. It's the ability to display live picture on multiple displays at once while still maintaining the original video quality.

Model: LUT7S
Screen Size: 7" IPS
Resolution: 1920x1200 pixels
Pixel Pitch: 0.07875 (H) x 0.07875 (W) (mm)
Aspect Ratio: 16:10
Brightness: 2200cd/m (Light Sensor)
Contrast Ratio: 1200:1
Backlight: LED
Viewing Angle: 80/80(L/R) 80/80(U/D)

Input
1 X BNC: 3G-SDI
1 X HDMI

Output
1 X BNC: 3G-SDI
1 X HDMI
1 X DC: Barrel (5.5mm outer, 2.1mm inner) barrel output for powering cameras via camera specific adaptor.
Audio
Audio: 3.5mm Stereo Headphone

SDI Support Format
720p (60/59.94/50/30/29.97/25/24/23.98)
1080i(60/59.94/50)
1080p (60/59.94/50/30/29.97/25/24/23.98)

HDMI Input/ Output Support Format
480i/576i/480p/576p
1080i (60/59.94/50)
720p (60/59.94/50/30/29.97/25/24/23.98)
1080p (60/59.94/50/30/29.97/25/24/23.98)
4K UHD 38402160p (30/29.97/25/24/23.98Hz), 40962160p (24Hz)

General
Input Voltage: DC724V
Power Consumption: 18W
Working Temperature: -20C~50C
Storage Temperature: -30C~60C
Install Way: 1/4"-20 Thread Socket (Left, Right, Bottom)
Battery Plate: Dual F970 Battery Plate
Unit Size: 190Lx126Hx27D (mm)
Unit Weight: 460g
Note: When you turn off the monitor, you need to press the power button, and you can't pull out the power cable directly.

Advanced Features
Support 3D LUT Log to Rec.709, user 3D LUT Upload
Support Touch Menu
Parade (RGB, YUV, Y)
All Waves
Vector
RGB Histogram
Brightness Histogram
Embedded Audio
Peaking Focus (red, green, blue, white, yellow five peaking colors optional; 1~10 peaking level adjustable)
False Colors
Zebra Exposure (1%~100% adjustable)
Check Field (Red, Green, Blue, Gray)
Scan Mode (Under Scan, Over Scan)
Anamorphic Mode (1.25x, 1.33x, 1.5x, 2.0x, 2.0x mag)
Image Flip (H, V, H/V)
Image Freeze
Center Marker
Safety Marker (70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1)
Ratio Marker (16:9, 16:10, 4:3, 1.85:1, 2.35:1)
Marker Color (red, green, blue, white, black, yellow)
Color Temperature Adjustment
Nine Grid
Zoom (100%~300%)
Aspect Ratio
Pixel to Pixel
