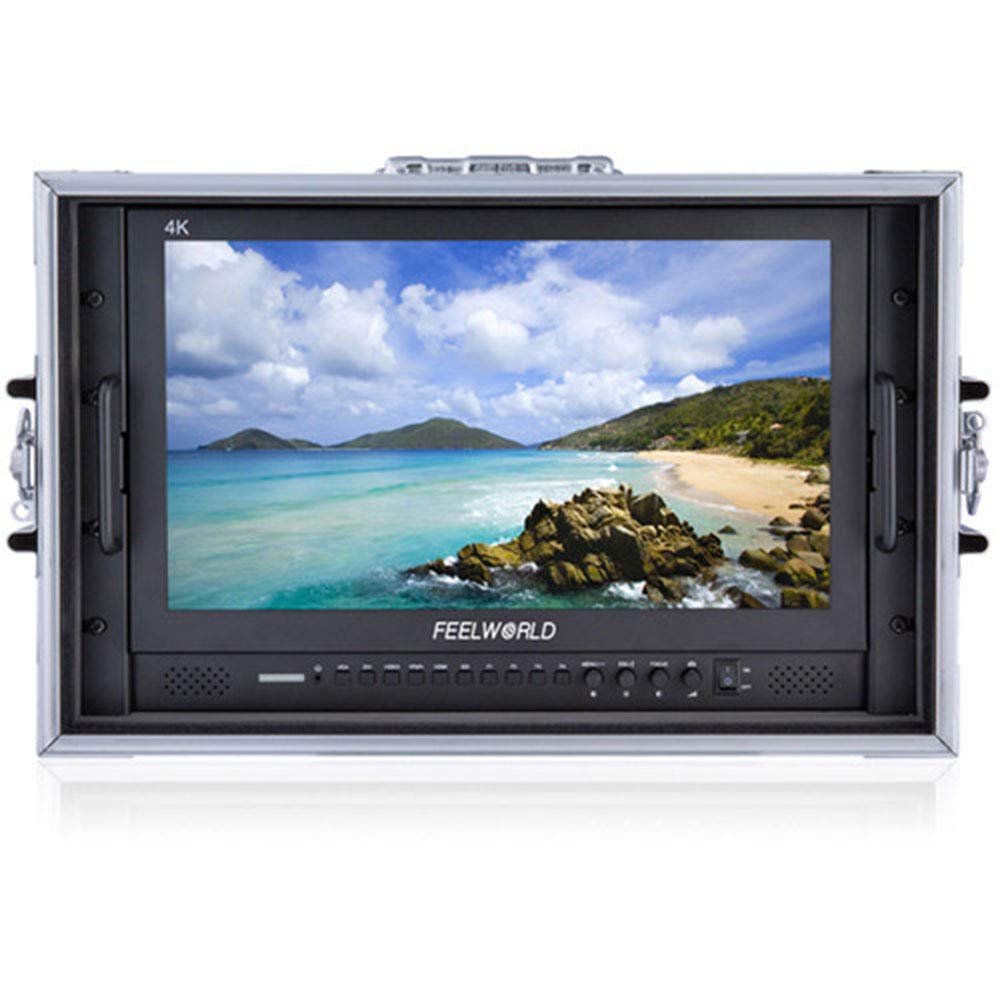

FEELWORLD P173-9HSD-CO 17.3" 1920x1080 Desktop Monitor for Broadcast LCD Monitoring with 3G-SDI 4K HDMI AV YPbPr Full HD 8 Bit for Professional Live Event Post Production Director Film Camera Field

Description

• 17.3 Inch Full HD (1920X1080) Resolution, High Brightness: 400cd/m2, High Contrast: 600:1, Response Time: 40ms, Viewing Angle: 80/80(L/R)60/80(U/D)
• 3 colors built-in LED tally light (red, green, yellow)
• Full metal cabinet, high impact resistance, anti-interference
• Multiple inputs:3G-SDI / HDMI / YPbPr / Video / Audio(L/R) / DVI-I, outputs: 3G-SDI / HDMI / YPbPr / Video, audio: 3.5mm stereo headphone jack / build-In speaker
• Standard Accessories:3A DC Power Adapter, V Battery Plate, Mini HDMI Cable, Tally Kit, Sunshade, U bracket, Operation Manual. Power using included 12-volt supply or use standard 4-pin XLR

Video
1 x HDMI Type A (HDMI 1.4) Input
1 x BNC (3G-SDI) Input
1 x 3BNC (Component) Input
1 x BNC (Composite) Input
1 x DVI-I Input
1 x HDMI Type A (HDMI 1.4) Output
1 x BNC (3G-SDI) Output
1 x 3BNC (Component) Output
1 x BNC (Composite) Output

Embedded Audio: HDMI SDI

Audio
1 x 2RCA Input
1 x 3.5 mm Headphone Output
Built-In Speaker: 2

Power
1 x 4-Pin XLR Input
1 x Barrel Input

Other I/O
1 x Tally (DE-9/DB-9)

Format Support
Video Format
HDMI
DCI 4K: 24
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
1080PsF: 24/23.98
720p: 60/59.94/50/30/29.97/25/24/23.98
576p
480p
576i
480i

SDI
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
1080PsF: 24/23.98
720p: 60/59.94/50/30/29.97/25/24/23.98
576i
480i

Power
DC Input Power: 9 to 24 VDC
Battery Type: 1 x V-Mount
Power Consumption: 26 W (Maximum)

Environmental
Operating Temperature: 14 to 122F / -10 to 50C
Storage Temperature: -4 to 140F / -20 to 60C

General
Dimensions (W x H x D): 16.77 x 11.69 x 1.38" / 42.6 x 29.7 x 3.5 cm19.69 x 12.01 x 9.06" / 50 x 30.5 x 23 cm, Including Case
Weight: 23.59 lb / 10.7 kg, Including Case

Packaging Info
Package Weight: 29.46 lb
Box Dimensions (LxWxH): 22.7 x 15.9 x 12.1"
