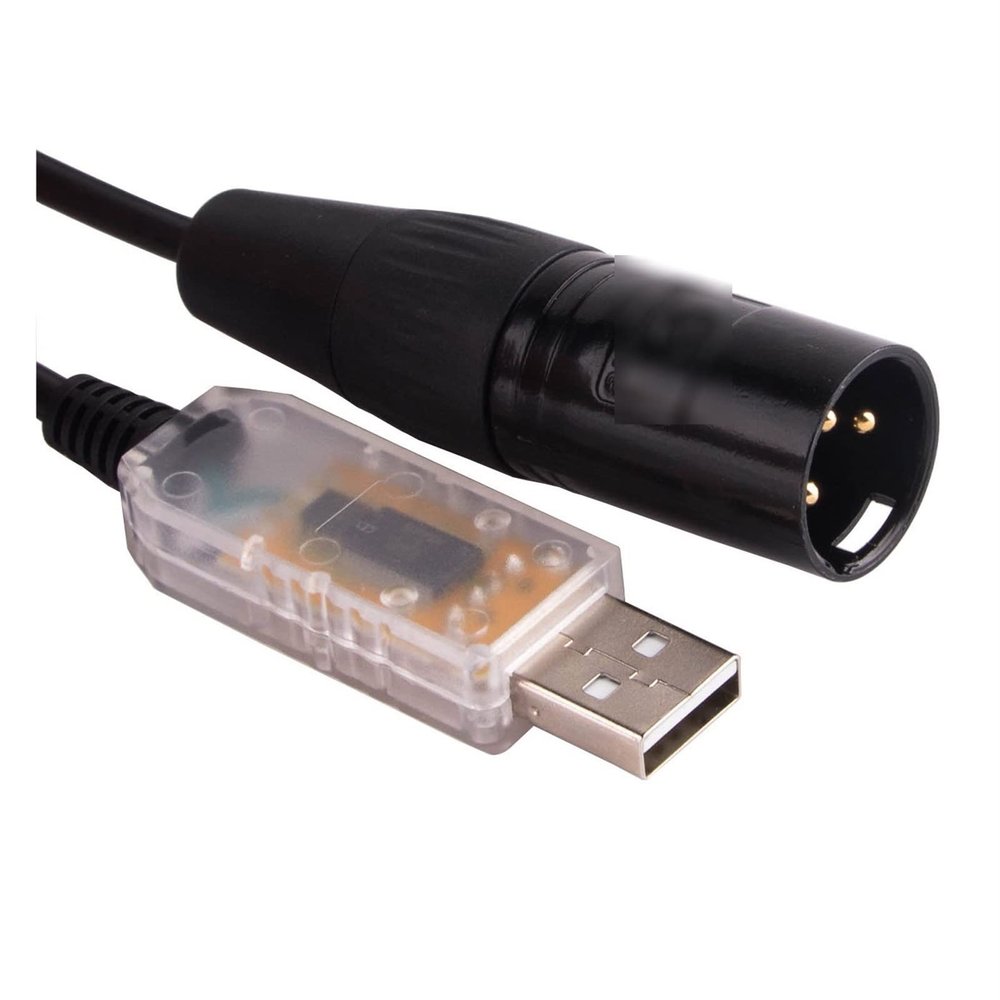

F-T-D-I USB to 3Pin X-L-R D-M-X RS485 Serial Adapter Converter Audio Management System Speaker Cable Compatible with DP448 Marani DPA240P (Size : 5M, Color : Transparent USB)

Description

• FTDI USB to RS485 Serial Adapter Cable
• Compatible With Marani DPA240P
• FTDI USB to 3Pin XLR DMX RS485 Serial Adapter Converter Audio Speaker Cable Compatible With Marani DPA240P
• Length: 1.0/1.8/3.0/5.0m Available
• Geniune FTDI chip FT232RL import from UK .

FTDI USB to 3Pin XLR DMX RS485 Serial Adapter Converter Audio Speaker Cable Compatible With Marani DPA240P
FTDI USB to RS485 Serial Adapter Cable
Compatible With Marani DPA240P
FTDI USB to 3Pin XLR DMX RS485 Serial Adapter Converter Audio Speaker Cable Compatible With Marani DPA240P
Length: 1.0/1.8/3.0/5.0m Available
Geniune FTDI chip FT232RL import from UK .
Package : 1 X USB to rs485 Cable
About FT232RL
The FT232R is the latest device to be added to FTDI?s range of USB UART interface Integrated Circuit Devices. The FT232R is a USB to serial UART interface with optional clock generator output, and the new FTDIChip-ID? security dongle feature. In addition, asynchronous and synchronous bit bang interface modes are available. USB to serial designs using the FT232R have been further simplified by fully integrating the external EEPROM, clock circuit and USB resistors onto the device.
The FT232R adds two new functions compared with its predecessors, effectively making it a "3-in-1" chip Compatible With some application areas. The internally generated clock (6MHz, 12MHz, 24MHz, and 48MHz) can be brought out of the device and used to drive a microcontroller or external logic. A unique number (the FTDIChip-ID?) is burnt into the device during manufacture and is readable over USB, thus forming the basis of a security dongle which can be used to protect customer application software from being copied.
Single chip USB to asynchronous serial data transfer interface.
Entire USB protocol handled on the chip - No USB-specific firmware programming required.
UART interface support Compatible With 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity.
Fully assisted hardware or X-On / X-Off software handshaking.
Data transfer rates from 300 baud to 3 Megabaud (RS422 / RS485 and at TTL levels) and 300 baud to 1 Megabaud (RS232).
In-built support Compatible With event characters and line break
