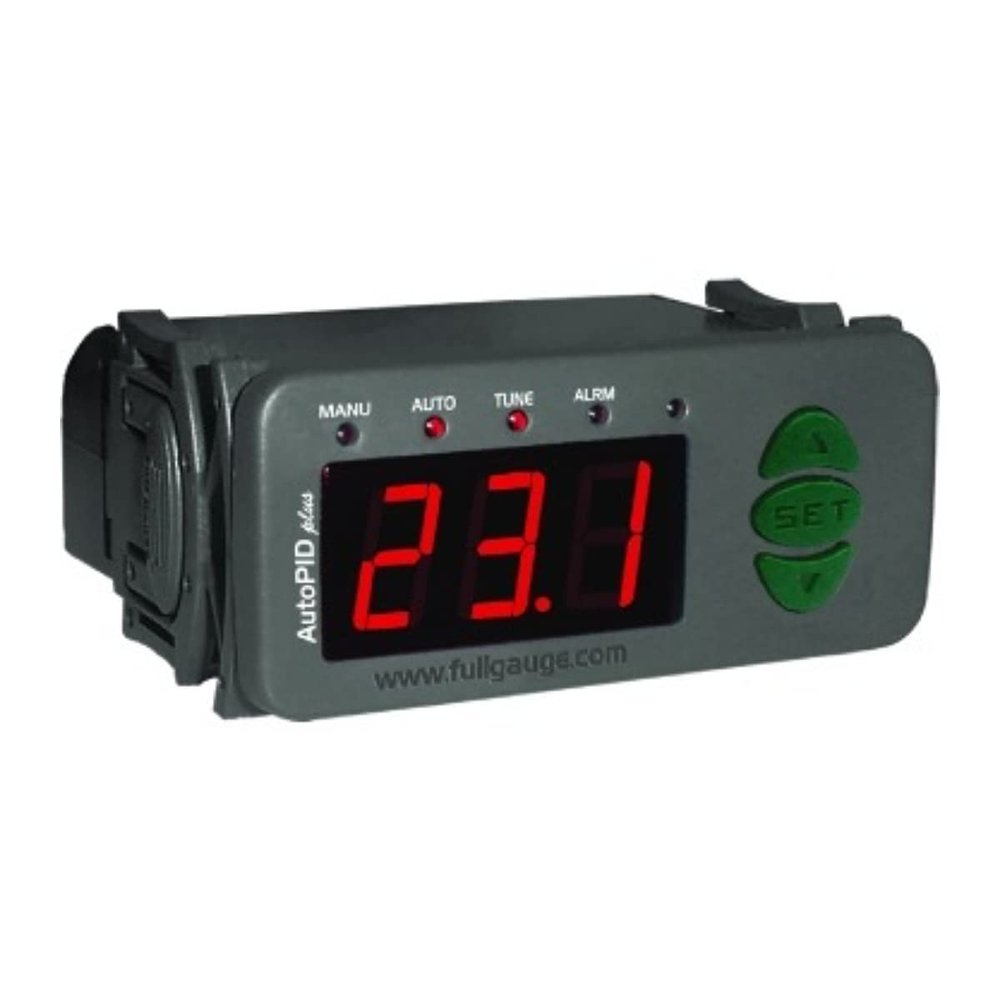

Full Gauge AutoPID Plus Electronic Cooling and Heating PID Control. 1 Sensor, 2 Outlets, 1 Alarm Output, 110/220V. Sitrad Compatible

Description

• Product Feature: For cooling and heating processes, uses PID control (Proportional Integral Derivative), which allows controlling the temperature with high degree of stability.
• Product Feature: It has an analog output from 0 to 10 Vdc and PWM output. It has a serial communication for connection to Sitrad.
• Product Feature: This product is UL certified.
• Product Feature: Power Supply: 90 to 264Vac (50/60 Hz)
• Product Feature: Application: green houses, stoves, laboratories and injection machines, freezing and heating chambers, refrigeration plants, set of compressors

Full Gauge AutoPID Plus Electronic Cooling and Heating PID Control. 1 Sensor, 2 Outlets, 1 Alarm Output, 110/220V. Sitrad Compatible
For cooling and heating processes, uses PID control (Proportional Integral Derivative), which allows controlling the temperature with high degree of stability.
It has an analog output from 0 to 10 Vdc and PWM output. It has a serial communication for connection to Sitrad.
This product is UL certified.
Power Supply: 90 to 264Vac (50/60 Hz)
Application: green houses, stoves, laboratories and injection machines, freezing and heating chambers, refrigeration plants, set of compressors
Volume : 0.024 FTQ
Weight : 0.64 LBR
Model : AUTOPID PLUS
UPC-EAN : 7899129130681
PID TYPE DIGITAL TEMPERATURE CONTROLLER
The AutoPID plusis a digital controller for heating and cooling processes. It uses a PID (proportional, integral, and derivative) type controller, which enables to control the temperature with minimal fluctuation. Product complies with ULInc. (United States and Canada).
The AutoPID plus Full Gauge controller is a device that controls the temperature with precision for cold and heat processes. It has a universal input that supports NTC, PTC or PT100 sensors, which gives it a great flexibility and adaptability. It has an auto-tuning function that automatically adjusts the optimal PID parameters for the system, without the user having to intervene. It has a keyboard lock function that prevents the parameters of the controller from being changed by mistake or intention. It has an internal sound alarm function that is activated when the temperature goes out of the limits or when there is a failure in the system.
It has a serial communication for connection to Sitrad.
TECHNICAL SPECIFICATIONS
Power Supply: 90 to 264Vac (50/60 Hz)
Controlled Temperature: -50C to 100C (with resolution of 0.1C)
Indication Accuracy: 0.1C between -10C and 100C and 1C for the rest o
