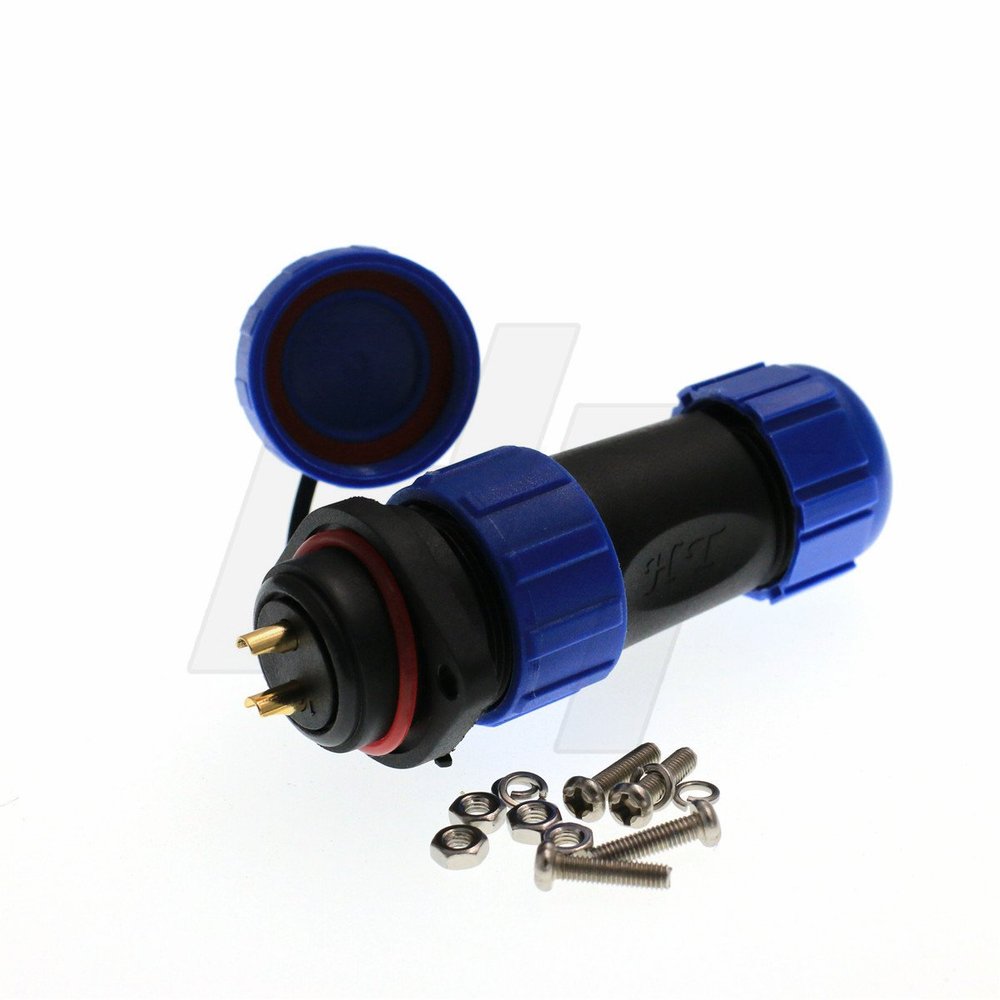

HangTon HE21 2 Pin Power Connector Waterproof Aviation Female Cable Plug Male Panel Mount Socket (5 Set)

Description

• Cable Range: 8-12mm, Wire Size: 4.17mm or 11AWG, Contact Diameter: 3mm
• Rated Voltage/Current : AC 500V/30A, Resistance: 1m
• Protected against solids & liquids, provide a secure and reliable connection in the harsh environment.
• For indoor and outdoor use.
• Waterproof IP68, threaded coupling, screw panel mount, quick disconnect, solder plug & socket

Features:
In the harsh environment can provide a safe and reliable connection.
HE21(Threaded Coupling) connector is ideal for any equipment for watertight, indoor / outdoor applications, such as outdoor electric tools or appliances, medical device, communications, Marine equipment, under water equipment, outdoor led lighting, outdoor LED panels, solar energy system, outdoor security cameras, transformer, control box, machines and equipment, packing machines, for data and power.

Specifications:
HE21:
Model: 2 Pin
Material: Plastic
IP Rating: IP68
Panel Cutout Diameter: 21mm
Cable Outer Diameter Range:8-12mm
Coupling Type: Threaded Coupling
Shell: Thermoplastic Nylon66, Fire Resistance: V-0
Insert Material: Thermoplastic PPS max temperature 260
Contact Material: Brass with Gold Plating
Termination: Solder
Mating Cycle: >500 times
Temperature Range: -40~+100
Humidity: +40 953%
Vibrator: 10~500Hz, acceleration 100m/s
Shock: 40~80times/min, acceleration 250m/s

Package Includes:
1 x Cable Plug with Female Pins
1 x Chassis Socket with Male Pins & 2 Screws
1 x Waterproof / Dustproof Cap
