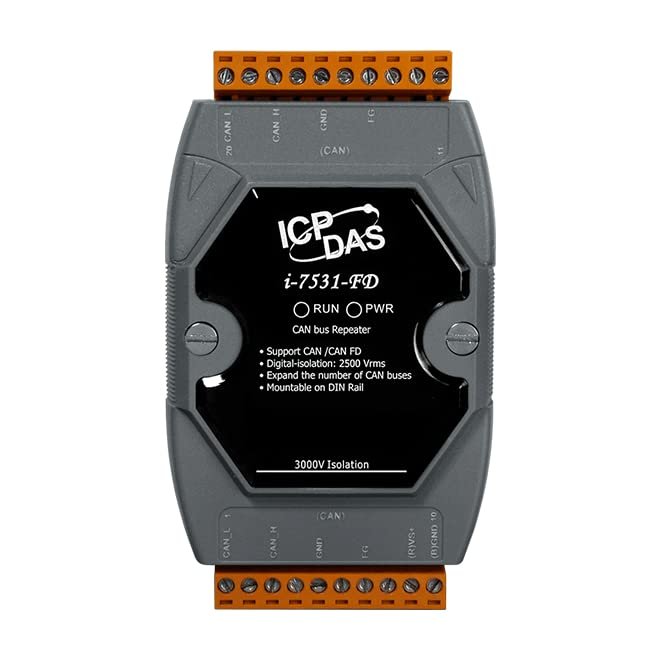

ICP DAS I-7531-FD Two-Channel Isolated CAN/CAN FD Signal Repeater

Description

• Applications: Control Systems, Building Automation, Factory Automation, Distributed Data Acquisition
• Supports CAN 2.0A / CAN 2.0B; Power Supply is with 3KV Galvanic Isolation Between 2 CAN Ports
• Photo-coupler Isolation between 2 CAN ports: 2500V rms
• Power Consumption: 2W max; Supports Operating Temperature: -25C to +75C (-13F ~ 167F)
• CAN Termination Resistors are Integrated (can be disabled)

The I-7531-FD is a CAN/CAN FD signal repeater, which can connect two or more CAN networks with the same baud rate. Based on the signal repeat function of I-7531-FD, users can use different numbers of I-7531-FD to combine tree-shaped and star-shaped CAN network topology, and when there are too many devices on the CAN network, using I-7531-FD can increase the driving force of the CAN signal to drive more CAN devices. In addition, the CAN side of the I-7531-FD has a digital isolation of 2500 Vrms, and the CAN side and the power side also provide 3000 V DC-DC isolation protection, which can effectively isolate the noise interference between CAN networks ,and achieve protection the purpose of a specific CAN network. Supported CAN specification 2.0A/B and CAN FD Fully compatible with the ISO 11898-2 standard Detected CAN bus baud rate automatically, maximum support 8000 kbps
