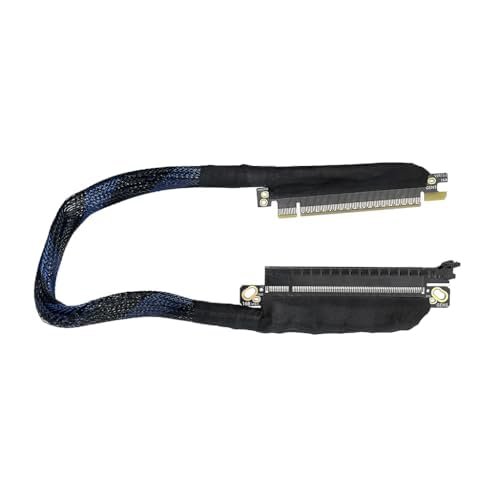

JMT 180 Degree 64GBS PCIE 5.0 X16 Graphics Card Extension Cable 180-Degree GEN5 Braided Mesh Harness Riser for AI Server Graphics Card Bendable GPU Adapter 16AB5 (40CM,Left Out Left in)

Description

• PCIE 5.0 X16 graphics card extension cable, 64GB/S bidirectional bandwidth, 180 degree. Cannot be used to server motherboards that compatible with PRSNT signals, such as 5090.
• Extension Cable Usage: The PCIE card originally plugged directly into the motherboard, through the extension cable to replace the location for installation.
• Direction DetailLeft and right indicate the direction of the wire, with the board and slot notch on the left as the positive direction. Mesh and wire indicate braided mesh and silver-plated wire.
• 180 degrees left out and left in direction, suitable for graphics card extension installation, flexible placement.
• Widely Application: Support GPU cards, display cards, graphics cards, computing cards, accelerator cards, network cards, sound cards, capture cards, solid state drives, array cards, etc. Backward compatible with PCIE 4.0, PCIE 3.0.

JMT 64GB\S PCIE 5.0 X16 Graphics Card Extension Cable 180 Degree GEN5 Braided Mesh Harness Riser for AI Server Graphics Card Bendable GPU Adapter 16AB5

Cannot be used to server motherboards that compatible with PRSNT signals, such as cannot be used to motherboard 5090.

Model Detail:

AB-(Slot 180 degree flat straight model)

AD-(Slot 270 degree reverse right angle model)

Product Description:

1, PCIE 5.0 X16 GEN5 64GB\S bidirectional bandwidth.

2, 6 layers high frequency, low impedance, low dielectric PCB, special optimization process.

3, PCIE 5.0 gold-plated connectors, wire harnesses with mesh structure, cable diameter 12mm.

4, 180 degrees left out and left in direction, suitable for graphics card extension installation, flexible placement.

5, Gold finger end out from the left side, slot end in from the left side.

6, GEN5 silver-plated cable, Teflon insulation, aluminum foil Mylar shielding, dual-earth structure.

7, Support PCIE 5.0 data transmission, support connecting GPU graphics cards, solid state drives, expansion cards, etc., backward compatible with PCIE 4.0, PCIE 3.0.

8, Full machine welding, VU adhesive light curing, injection molding integrated protection, 8 inspection process, full inspection on the machine before shipment.
