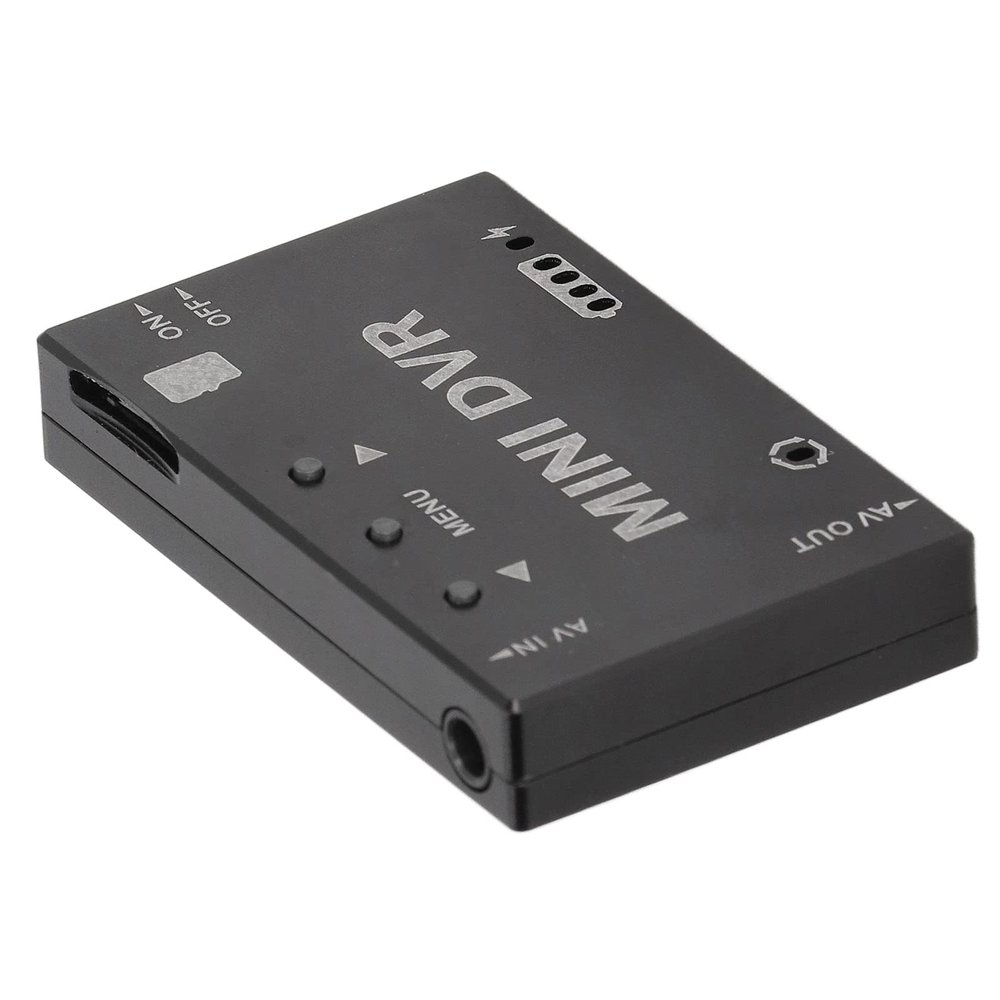

Mini FPV DVR Module, NTSC PAL Switchable Built in Battery Video Audio FPV Recorder for RC

Description

• [ Aluminum Alloy Shell] The miniature dvr module is crafted from aluminum alloy, providing durability and a lightweight design for rc .
• [Enhanced Functionality] Support for up to 32gb memory card, 3.7v lithium ion battery, and ntsc/pal video format switching ensure optimal performance.
• [Multi-language Menu Options] Choose from 11 menu languages, along with a high-accuracy battery power indicator and a universal usb charging interface.
• [Versatile Video Capabilities] Features cvbs input with built-in video decoder, playback support, and av output for flexible usage.
• [Premium Performance] Professional manufacturing, superior craftsmanship, and high accuracy deliver stable and recording for various rc applications.

Item Type: Mini FPV DVR Module
Material: Aluminum Alloy, Electronic Components
Product Size: Approx. 53 x 33 x 9mm / 2 x 1.3 x 0.4in
Weight: Approx. 64g / 2.3oz
Color: Black
System Startup Time: 3 Seconds
Video Input Format: NTSC, PAL
Video Input Impedance: 75 Typ
Video Compression Format: MJPEG
Recording File Resolution: VGA(640x480), D1(720x480), HD(1280x720) Optional
Recording File Format: AVI
Recording Sound: On or Off Optional
Cycle Recording Time: 10min, 20min, 30min Optional
Frame Rate: 30 Frames
Memory Card: Small memory card supports up to 32GB (C10 recommended) (purchased separately)
Optical Frequency: 50Hz, 60Hz optional
Video Playback: CVBS Output (Connected To Display)
Audio Input Interface: 3.5mm AV Jack
Audio Output Interface: 3.5mm AV Jack
Charging Interface: Micro USB Interface
Charging Voltage: 5V DC
Charging Current: 500mA
Battery (Non Removable): 3.7V, 400mah Lithium Ion Battery (Built In)
Battery Life: 1.5 to 2 hours per working load.
Operating Temperature: -10 to 60C
Working Humidity: 85% RH
Menu Language: 11 Language Choices
Menu Language: English, French, German, Italian, Spanish, Portuguese, Traditional Chinese, Simplified Chinese, Japanese, Russian And Korean.
Suitable: for FPV Drone, for RC Model Racing Car

PackageList:
1 x Mini FPV DVR Module
2 x Single End AV Cable
1 x Hook and Loop
1 x Storage Box
1 x Manual

Note:
1. Manual measurement, please allow 13mm error, thank you!
2. Due to the differences between different displays, the pictures may not reflect the actual color of the object.
3. (can be used with FPV glasses or screen without DVR function)
4. Please avoid damp or humid environment.
5. Please use a standard USB charger. The charging voltage can only be 5V.
