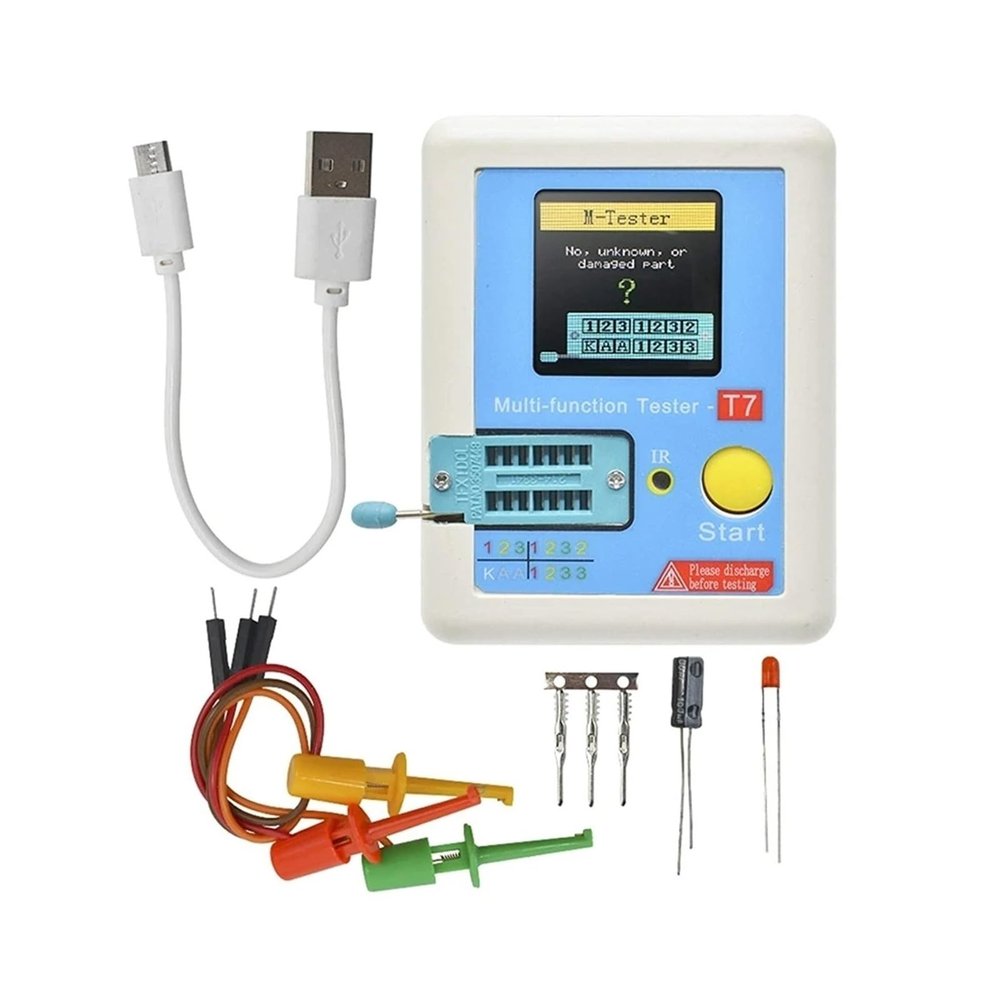

LIBODD LCR-T7 T7-H Transistor Tester TFT Diode Triode Capacitance Meter LCR ESR Meter NPN PNP MOSFET IR Multifunction Tester Multimeter(TCR-T7)

Description

• Lightweight and Portable: With a portable design, it is easy to carry and use on the move.
• Fast Measurement Speed: With fast measurement speed, accurate tests can be completed in a short period of time.
• User-friendly interface: A user-friendly interface and operation buttons enable users to set up and operate the measurement easily.
• Multiple Test Modes: Provides multiple test modes to suit the testing needs of different types and configurations of electronic components.
• External Interfaces: One is equipped with external interfaces for connection and data transfer to other equipment or computers for more extensive data processing and analysis.

LCR-T7
1.1 Introduction
- 160x128 TFT display
- Multi function key
- Transistor test area
- Zener Diode test area
- IR receiver window
- Micro USB Charging Interface
- Charge indicator LED
1.1 Features
TC-V2.12k is a TFT graphic display Multifunction Tester.
l Transistor Tester
- Automatic detection of zener diode0.01-30V
- Self test with automatic calibration
l IR decoder
- Support IR coding
- IR waveform display
- Infrared receiving instruction
l Other
- Measurement results using TFT graphic display(160x128)
- One key operation
- Auto Power Off(Timeout Settable)
- Built-in high capacity rechargeable Li-ion Battery
- Li-ion Battery voltage detection
- Support Chinese and English
Warning: Built-in Li-ion Battery, it is strictly prohibited the tester immersed in water, or near a heat source!
Warning: For your personal safety, please strictly comply with the use of Li-ion Battery specifications and precautions!
1 Operating Instructions
1.1 Key operational definitions
Multi-function key has two actions:
l Short press: Press the key and not less than 10 ms, release key within 1.5 seconds
l Long press: Press the key more than 1.5 seconds
1.2 Power on
In the power off state, short press the multifunction key, the tester is turned on and automatically measured.
l Power on & measurement interface
TCT7-H
28x128 TFT display
Multi function key
Transistor test area
Zener Diode test area
IR receiver window
Micro USB Charging Interface
Charge indicator LED
Features:
TC-T7-H is a TFT graphic display Multifunction Tester.
Transistor Tester:
Automatic detection of NPN and PNP bipolar transistors, N-channel and P-channel MOSFETs, JFETs, diodes (including double diodes), N- and P-IGBTs, resistors (including potentiometers), inductors, capacitors, thyristors, triacs and battery (0.1-4.5V)
Automatic detection of zener diode(0.01-20V)
Self test with automatic calibration
IR decoder:
Support IR coding
IR waveform display
Infrared receiving instruction
Other:
Measurement results using TFT graphic display(160x128)
One key operation
Auto Power Off(Timeout Settable)
Built-in high capacity rechargeable Li-ion Battery
Li-ion Battery voltage detection
Performance Parameters:
Multifunction Tester can automatically identify elements and automatic detection of pin layout, and automatic switching range.
