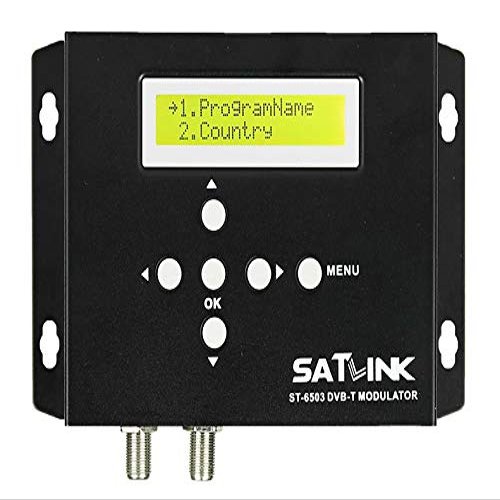

MeterTo Digital DVB-T Modulator ST-6503 Constellaton 64QAM Bandwidth 6/7/8 MHz Carriers 2K/8K Guard Interval 1/32

Description

• High level of integration, high-performace, full-featured, integrated design;
• Single input modulator that converts HD source to a DVB-T channel; Standard COFDM modulation and H.264 encoding;
• Multiple video format compatibility including 720p/1080p; Bandwidth: 6/7/8MHz; Frequency range: 50-860MHz;
• Continuously adjustable RF signal output level range 70dBuV from 100dBuV, step 1dBuV;
• 16*2 LCD lattice screen; Small size and light weight; Carriers 2K & 8K; Compact and wall mountable.

MeterTo
MeterTo mainly offers instruments and tools.
Please confirm the product is offered by our store MeterTo when purchasing,
otherwise we can't ensure the quality and after-sale service.

Introduction
DVB-T modulator is developed to adapt terristrial digital television.
It is mainly applied in home entainment, surveillance control, hotel digital signage, shops, etc.
And it is integrating MPEG-4 AVC/H.264 encoding and modulating to convert audio/video signals into DVB-T RF out.

Specification
Model: ST-6503
Modulator
Standard: DVB-T
Constellaton: 64QAM
Bandwidth: 6/7/8 MHz
Carriers: 2K/8K
Guard Interval: 1/32
Code Rate: 7/8
MER: >35dB
Frequency Range: 50-860MHz
RF Level: 70-100 dBuV
Output Impedance: 75

HD
Compression: H.264-bitrate 5-15 Mb/s
Video Resolution: 1920*1080_60P; 1920*1080_50P; 1920*1080_60i; 1920*1080_50i; 1280*720_60P; 1280*720_50P
Connector: HD

Power: DC 12V/1.5A
Operating Temperature: 0-50
Dimension: 125*100*28mm
Weight: 0.5kg
