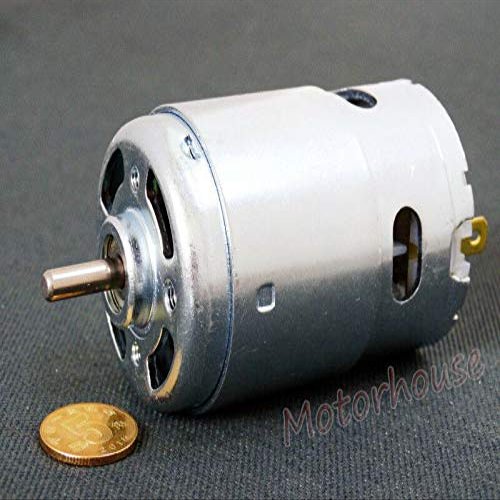

Motors DC6V~24V 12V 18V High Speed Large Torque RS-775/795/895 Electric Motor 5mm Shaft - (Model:RS-895 Motor Dual Ball Bearing)

Description

• Model:RS-895 Motor Dual Ball Bearing
• DC 6V~24V 12V 18V High Speed Large Torque RS-775/RS-795 Electric Motor 5mm Shaft

Product Description:Store categorySign Up Now !You may also likeDC 6V~24V 12V 18V High Speed Large Torque RS-775/RS-795 Electric Motor 5mm ShaftProduct DescriptionSpecification:The motor uses high-strength high-temperature enameled wire, high-current carbon brush, ball bearing, metal tail cover, large wind blade and large heat-dissipation fan, with anti-magnetic shielding cover. It is suitable for car model, boat model and power tool, lathe milling machine, scooter, etc.The RS-775 is a high speed type, single bearing, rated voltage value 12V, the use voltage range is 6-15V.Size about: diameter 45MM, length 67MM, total length 98MM, shaft diameter 5MM, shaft length 15MM, 351 grams.Mounting hole distance: 29MM/M4 screwThe following are the no-load speed and current reference values at different voltages.DC6 V 5900 rpm current 1.06ADC9 V 8900 rpm current 1.18ADC12V 12000 rpm current 1.31ADC15V 15100 rpm current 1.45AThe RS-795 is a high-speed, double-bearing, rated voltage of 12V, with a voltage range of 6-18V.Size about: diameter 45MM, length 70MM, total length 98MM, shaft diameter 5MM, shaft length 15MM, 374 grams.Mounting hole distance: 29MM/M4 screwThe following are the no-load speed and current reference values at different voltages.DC6 V 5400 rpm current 0.5ADC9 V 7900 rpm current 0.56ADC12V 10500 rpm current 0.64ADC15V 13000 rpm current 0.72ADC18V 15700 rpm current 0.86AThe RS-895 is large torque type, double bearing, rated voltage 12V, voltage range 6-24VSize about: diameter 50MM, length 72MM, total length 101MM, shaft diameter 5MM, shaft length 15MM, 502 grams.Mounting hole distance: 29MM/M4 screw or 32MM/M5 screwThe following are the no-load speed and current reference values at different voltages.DC6 V 2900 rpm c
