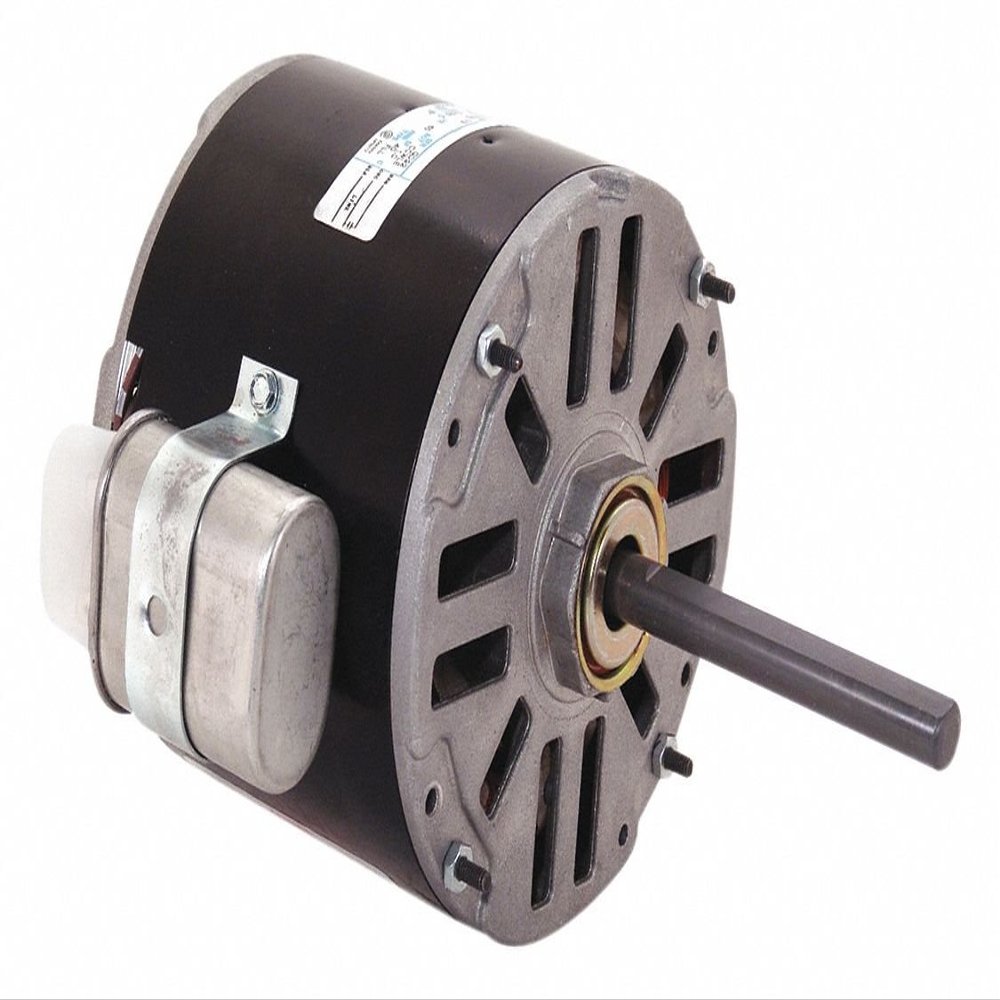

Mtr, PSC, 1/5 HP, 1075 RPM, 208-230V, 48Y, OAO

Description

• Price For: Each Motor Service Factor: 1.00 Phase: 1 Motor Thermal Protection: Auto Motor Design: Permanent Split Capacitor Voltage Compatibility: 115/208-230, 208-230, 208-240 Standards: UL Recognized, CSA Certified No. of Speeds: 1 Hz: 60 Motor Application: OEM Replacement Capacitor Required: Included Max. Ambient Temp.: 40 Degrees C Nameplate RPM: 1075
• Mounting Stud Pattern: 3-5/8" x 3-5/8" Length Less Shaft: 5-1/8" Item: Condenser Fan Motor Bolt Circle Dia.: 5-3/16" Shaft Dia.: 1/2" HP: 1/5 Body Dia.: 5-5/8" Full Load Amps: 1.3-1.4 Ins. Class: B Frame: 48Y Application: Hussman Motor Bearings: Ball Motor Shaft Rotation: CWLE Voltage: 208-230 Motor Enclosure Design: Open Air-Over Shaft Length: 2-1/2" Motor Mounting Type: Stud
• Overall Length: 7-5/8" Country of Origin (subject to change): Mexico

' Condenser Fan Motor, Permanent Split Capacitor, 1/5 HP, Nameplate RPM 1075, Voltage 208-230, Frame 48Y, Open Air-Over, Number of Speeds 1, Full Load Amps 1.3-1.4, 60 Hz, Stud Mounting, Thermal Protection Auto, Insulation Class B, Service Factor 1.0, Ball Bearings, Max. Ambient Temp. 40 Degrees C, Rotation CWLE, Overall Length 7-5/8 In., Shaft Dia. 1/2 In., Shaft Length 2-1/2 In., Capacitor Required Yes '
