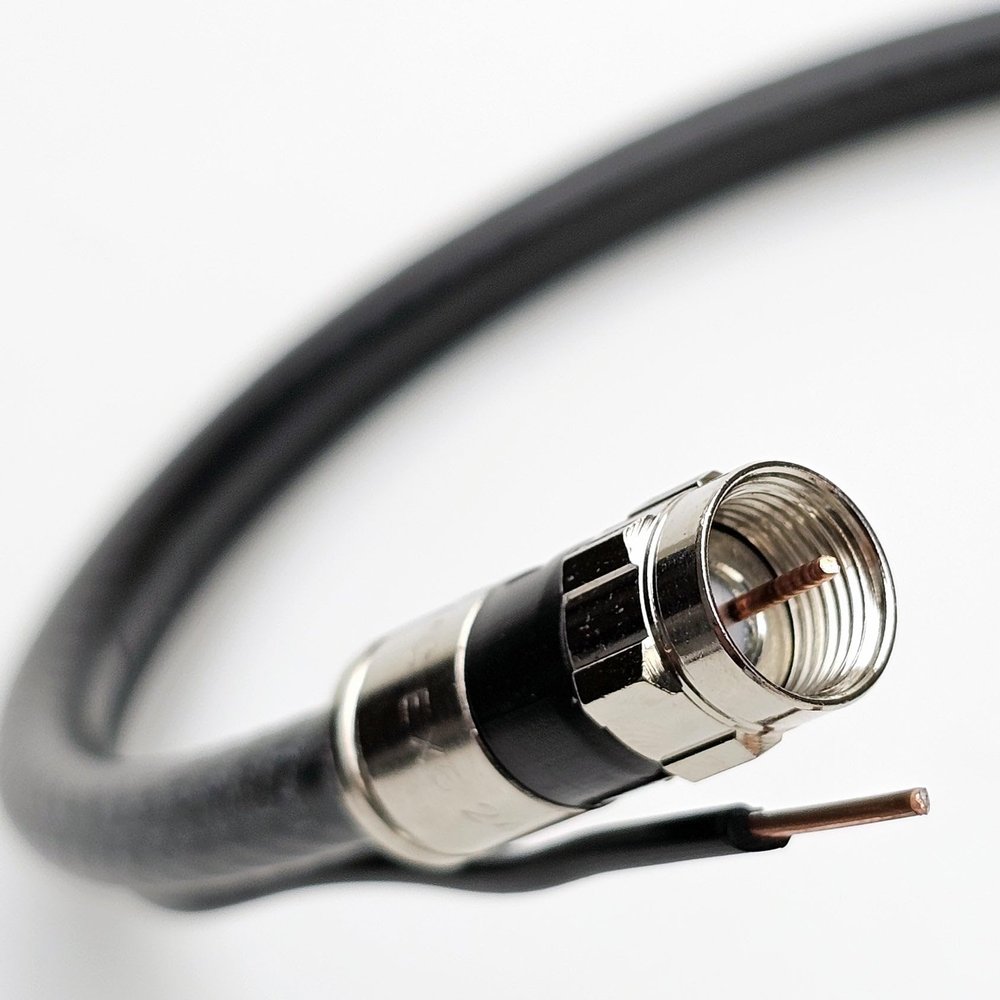

PHATSAT USA Made RG6 Coaxial Cable Aerial Messenger, High-Performance Plus Wire for TV, Satellite & Internet, Black, 45 ft

Description

• Aerial Messenger RG6. Shield X . 77% braid 18AWG solid core. Design for structural Aerial hanging from pole to pole, or pole to structure.

These coiaxial cables are hand crafted in the USA. AERIAL MESSENGER 18AWG core RG6 with 17AWG STRUCTURAL MESSENGER wire attached for signal transmission performance via AERIAL drops between structure or pole line junctions. High defintion video, crisp audio sound quality, durability and longevity. The CM rating indicates that the jacket of the cable has been treated with a flame retardant in order to comply with NEC regulations for suitable required installations. Withsatnd abrasion for OUTDOOR installation works. Each cable are swepted tested and made to high standard specification with 6 staging quality control procedures.

CABLE APPLICATIONS Over the Air (OTA) Digital High DefinitionTV antenna Ultra High Definition (UHD) 4k TV Gigabit High Speed cable internet service selected Cellular signal boosters remote sensor, RDF modulators and devices Signal amplifier for various applications Ham radio, Magnetic Loop Antennas

CABLE SPECIFICATION Solid 18AWG Tripple Shield 77% Braided , 100% Aluminum Foil Shield Impedance: 75 Ohms 3 Ohms
Capacitance: 16.2 PF/ft 1.0 PF/ft
Velocity of Propagation: 83%
Nominal Delay: 1.22 NS/ft
Conductor DC Resistance: 22 Ohms / Km
Shield DC Resistance: 43 Ohms / Km
Swept Tested for Cable Internet services Ultra HD approved Indoor and Outdoor usage Operating Temperature: -40 C through +75 C Rated forAERIAL Installation SBCA compliant UV coated PVC jacket Foamed polyethylene

CONNECTORS Male F-type to Male F-type coaxial connector Uses the dynamic range of the tough yet versatile plastic body to seal in the most effective way possible. Metal compression ring also allows industry leading cable retention values through all cable sizes in the field Bandwidth 0 MHz to 3 GHz
Impedance 75 Ohms (nominal)
Return Loss (Gated)
5 to 1,000 MHz -30 dB Minimum
1,000 to 2000 MHz -30 dB Minimum
2,000 to 3,000 MHz -20 dB Minimum
Insertion Loss 5 to 3,000 MHz Less than .20 dB
Operating Temperature -40 F to 140 F (-40 C to 60 C)
Cable Retention 45 lbs (20.41 kg) minimum Constructed with Brass, Nickel Plated, Anti-Corrosion Materials Excellent Shielding Protection Unique 7/16 in nut profile allows hand tightening while discouraging wrench-tightening on CPEs Maintains ground continuity even when very loose Reduces QAM errors/packet loss Prevents service issues from loose connections

*** ***

IMPORTANT INFORMATION

Standard RG-6 cable (1786-RG6/A with attenuation of 5.99 dB) number of taps in your segment (there is no minimum trunk-cable section length requirement). The maximum allowable total length of a segment is 1,000 m (3,280 ft) with two taps connected. Typical signal loss is approximately -5dB per 100ft. for TV reception. Please consider length below 200ft for minimal signal loss for most TV and satellite TV applications. We recommend to use RG11 for length above 150ft and longer. See our RG11 page for additional information. For recommendation and or usage application, please consult with your service provider or our helpdesk prior to making a purchase.
