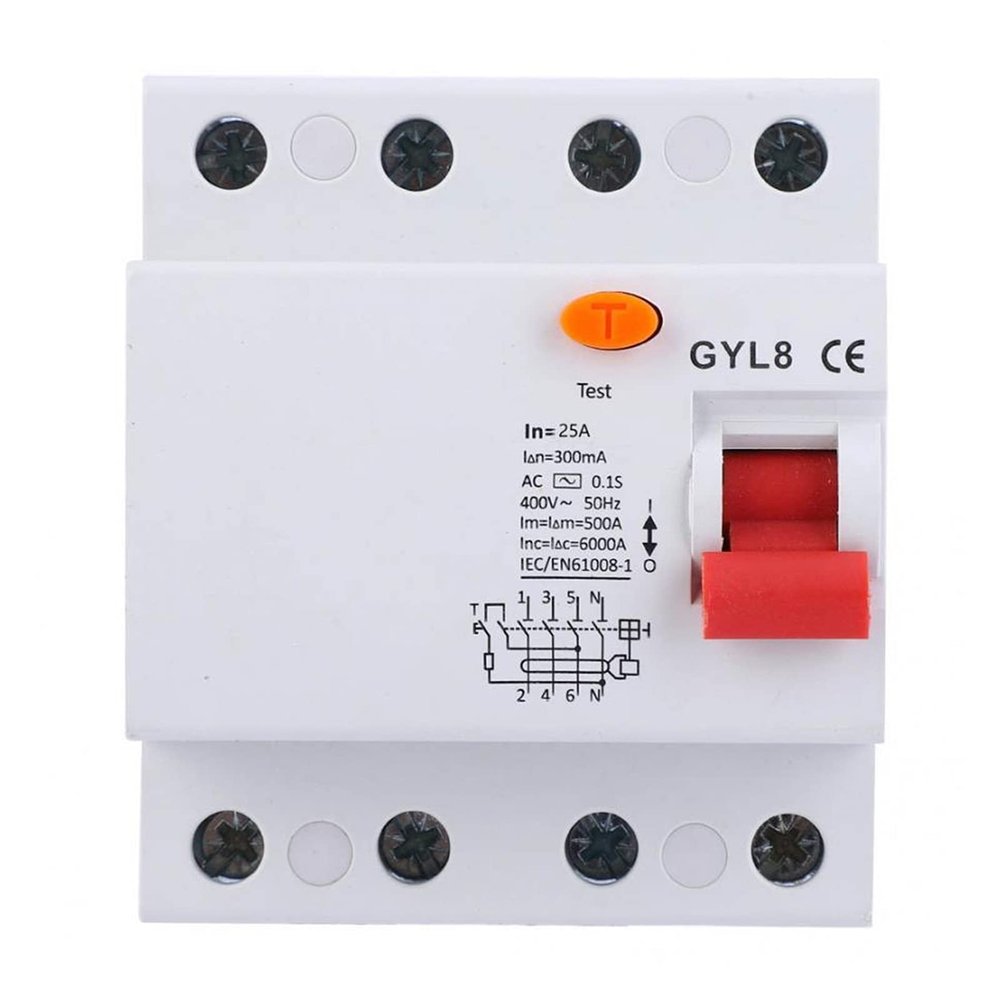

Relay Circuit Breaker Automatic Smart Protection Switch 4P AC400V 25A 40A 63A Electric Leaking Protector Current Circuit Breaker (Size : 25A)

Description

VUBBJCRS
Circuit Breaker
Feature:
1. Maximum connection capacity 25mm, wiring torsion 3.5N.m, suitable for various installation equipment.
2. Bilateral busbar wiring capacity to accommodate a wider range of uses.
3. When someone encounters an electric shock or the leakage current exceeds a fixed value, the power supply can be cut off.
4. In order to protect the person and equipment, the short\u2011time fault current can also be used for the circuit and electronic starter's not\u2011frequent starting.
5. The circuit breaker is suitable for industrial, commercial, high\u2011rise buildings, homes and other places.
Specification:
Item Type: Circuit Breaker
In Accordance With IEC/EN61008.1
Maximum Wiring Capacity: 25mm
Wiring Torsion: 3.5N.m
Rated Input Current: 25A, 40A, 63A(Optional)
Pole: 4P
Rated Voltage Ue: AC400V
Insulation Voltage Ui: 500V
Rated Frequency: 50/60Hz
Rated Sensitivity IN: 300mA
Rated Residual On-Off Capability Im: 500 (In=25-40A) 630 (In=63A)
Short Circuit Current Lnc=LC: 6000A
Disconnection Time IN: 0.1S
Rated Impulse Withstand Voltage (1.2/50) Uimp : 6000V
Insulation Test Voltage (Within One Minute): 2.5KV
Electrical Life and Mechanical Life: 4000
Set The Reference Temperature of The Thermal Element: 30
Ambient Temperature (Daily Average 35): -5~40
Storage Temperature: -25~70
