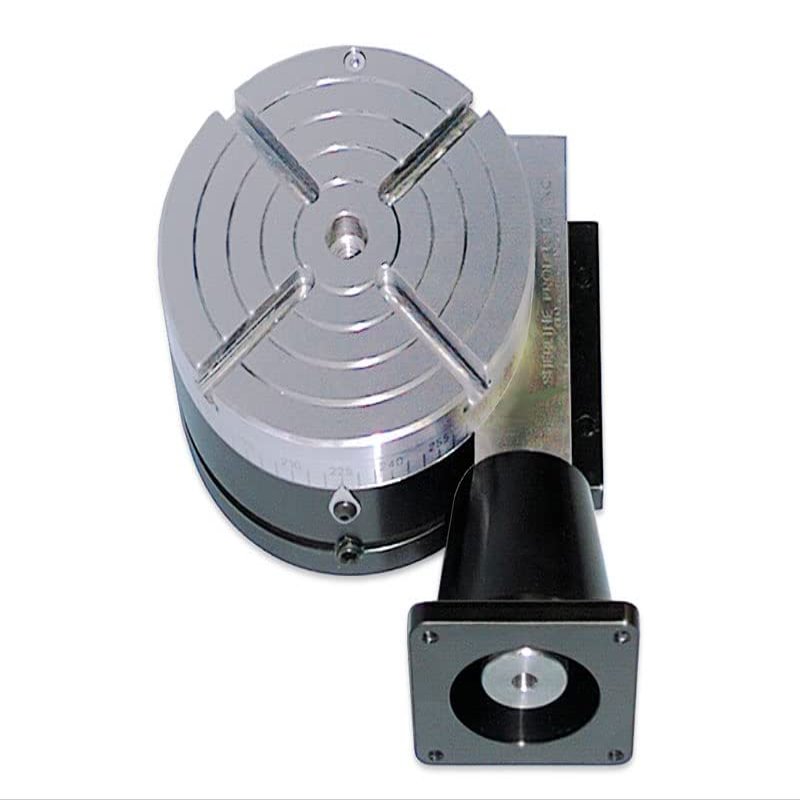

Sherline 4" CNC Rotary Table with a Mount for Stepper Motor

Description

• 3700 CNC Rotary Table with a mount for a Stepper Motor

Same as 3700 manual rotary table except with stepper motor mount replaces handwheel
> The Motor mount accepts NEMA 23 frame size stepper motor with " shaft
1-5/8" laser engraved handwheel provided for mounting on rear shaft of dual-shaft stepper motor

Includes angle clamps, hold-down bolts, T-nuts and -16 chuck adapter

Product description

Stepper Motor is not included
This is a version of the 3700 manual rotary table, except the worm housing has been replace with one that has a stepper motor mount at the end instead of a handwheel. A NEMA 23 size stepper motor is attached to the mount. If a dual shaft type motor is used, a handwheel (included) can be attached to the rear of the stepper motor for manual operation if desired. Sherline offers optional stepper motors as P/N 67127 or 67130 or you can use your own NEMA 23 motor, but the rotary table cannot be operated manually or CNC until a stepper motor is mounted. The table includes the same mounting clamps and chuck adapter as the 3700 manual table.
