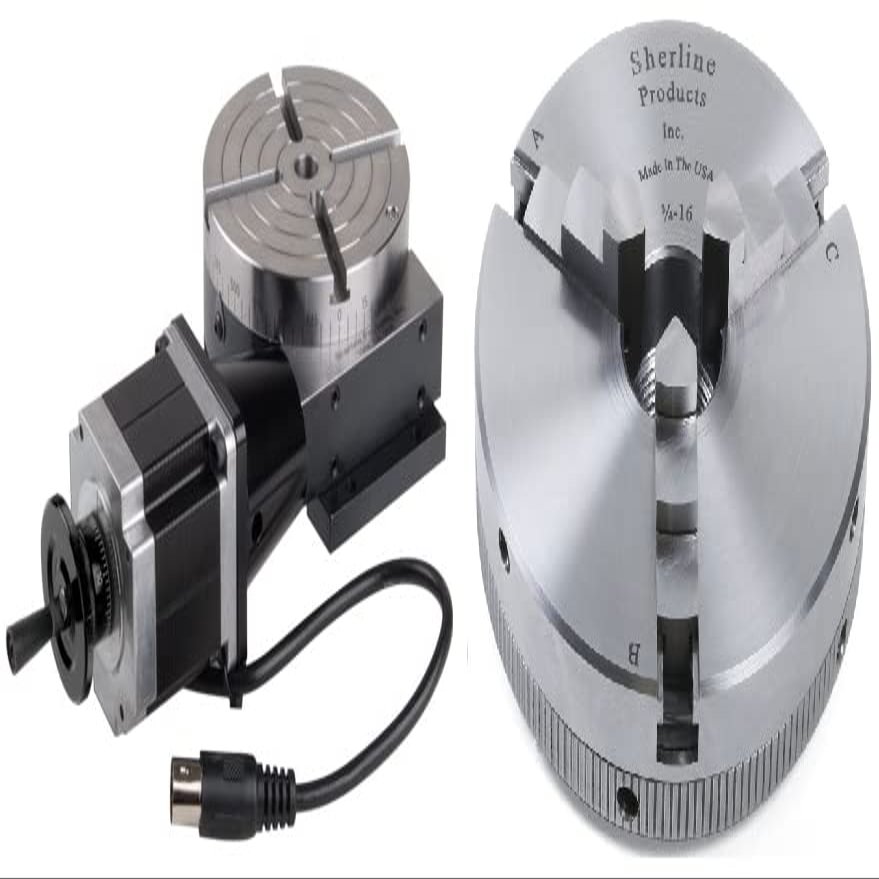

Sherline 8730 CNC Rotary Table with Stepper Motor and 1040 Chuck

Description

• CNC Rotary Table with Stepper Motor + PN 1040 3.1" 3 Jaws Chuck

This combo consist of the followings:

1. Sherline PN 8730 CNC rotary table
2. Sherline PN 1040 3.1" 3-Jaw Chuck

This rotary table is all you need to turn your Sherline CNC mill into a 4-axis machine. Just plug the A-axis cable from the external driver box or the built-in driver box in your Sherline computer into the matching plug on the stepper motor.

Rotary Indexer Specifications

Table Size:4 diameter by 2 height
Part mounting Provisions:Center thread including chuck adapter and 4 T-slots
Rotation Speed:1/ sec to 50/sec maximum
Resolution:28,800 steps per revolution (.006 per step)
Backlash Compensation:Programmable
Stepper Motor:120 oz-in, 2 Amp, NEMA 23 Frame size, 400 steps per revolution
NOTE: Sherline is stating the following weight limits for our rotary tables for continual use. Click on the Video tab above to see examples of different weights and uses for our rotary tables.

Horizontal orientation50 lbs.

Vertical orientation30 lbs.

Vertical rotational torque6 foot/lbs. (meaning it can lift a 6 lb. weight when suspended 12 away from the center of the rotary table)

The rotary tables can hold more weight when they are not under a continual load.
