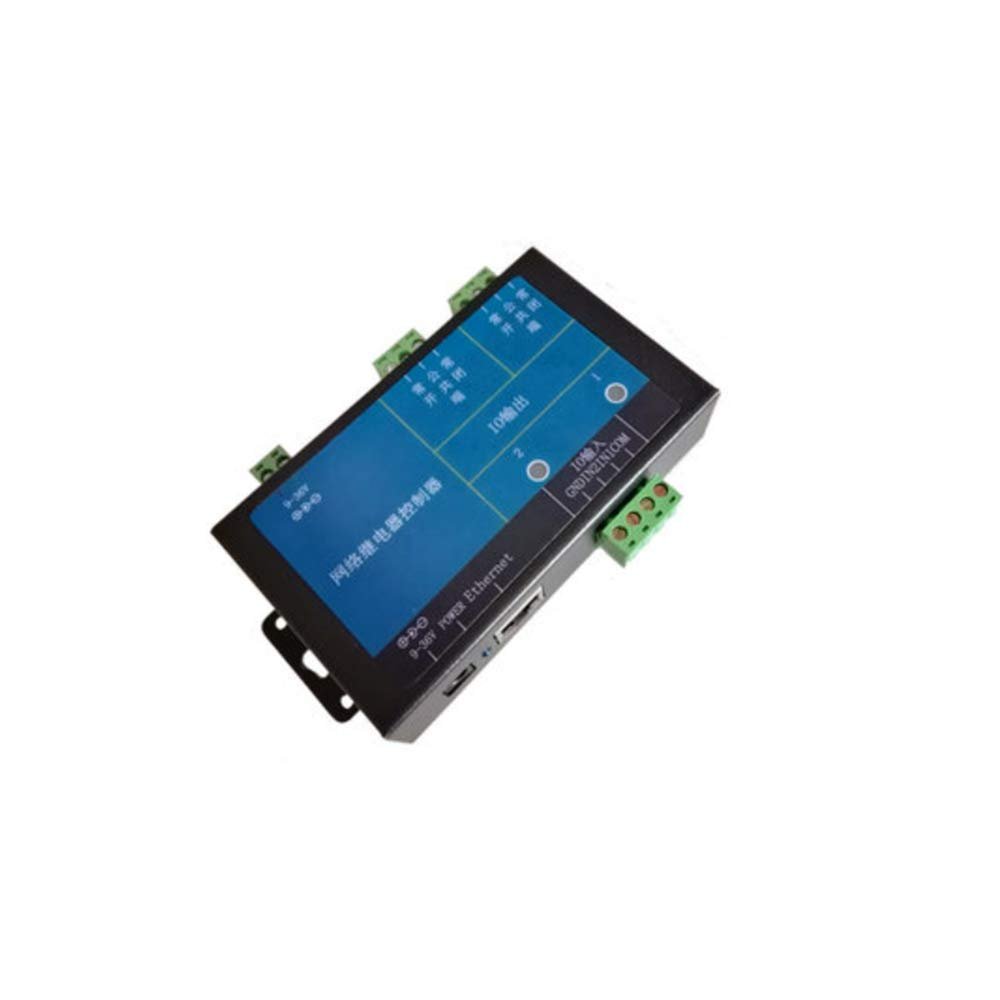

Taidacent 2-16 Channels Network Relay Control Board Network Port Input and Output Board IO Board Remote Wireless Network Controller IP Controlled Relay (2-Way Network Port)

Description

Controller Function Introduction
The relay control device interface is divided into WIFI, network port, GPRS, 485 and other methods, and has the same number of relay output and digital input interfaces, which are 2, 4, 8, 16 respectively.
Controller Control Protocol
Network port, WIFI, GPRS control in three networking modes:
1Open order protocol customers can integrate control by themselves
2Support to assist the client server platform to realize remote remote control heartbeat ID data format, etc. 3Support special requirements protocol logic change
Controller relay output
Built-in relay
Relay parameters--each relay output support
AC less than AC250V10A current
DC less than DC28V10A current
Among them 2 wifi relays support 30A
Relay output function
1, Normally closed and opened, such as control power on and off 2.Pulse output It can be set for 2ms-60 minutes after closing for a period of time. 3, time-delay action One instruction Each relay is closed or opened by itself according to the set time to reduce the instantaneous power or logic scenario.
Digital input
The devices have the same number of switch detection interfaces as the relay output
Digital parameters --- can be connected
Dry node passive signal such as button reed switch relay output etc.
Wet node Active signal 3-35VDC, such as proximity switch, infrared detection and other achievable functions
1, detect external signals can be obtained by query and can be actively uploaded
2, can be linked to relay action, such as the button to control the local relay, such as detection of a signal, relay control alarm, etc.
3. The devices control the input of device A to control the output of device B through the network.
