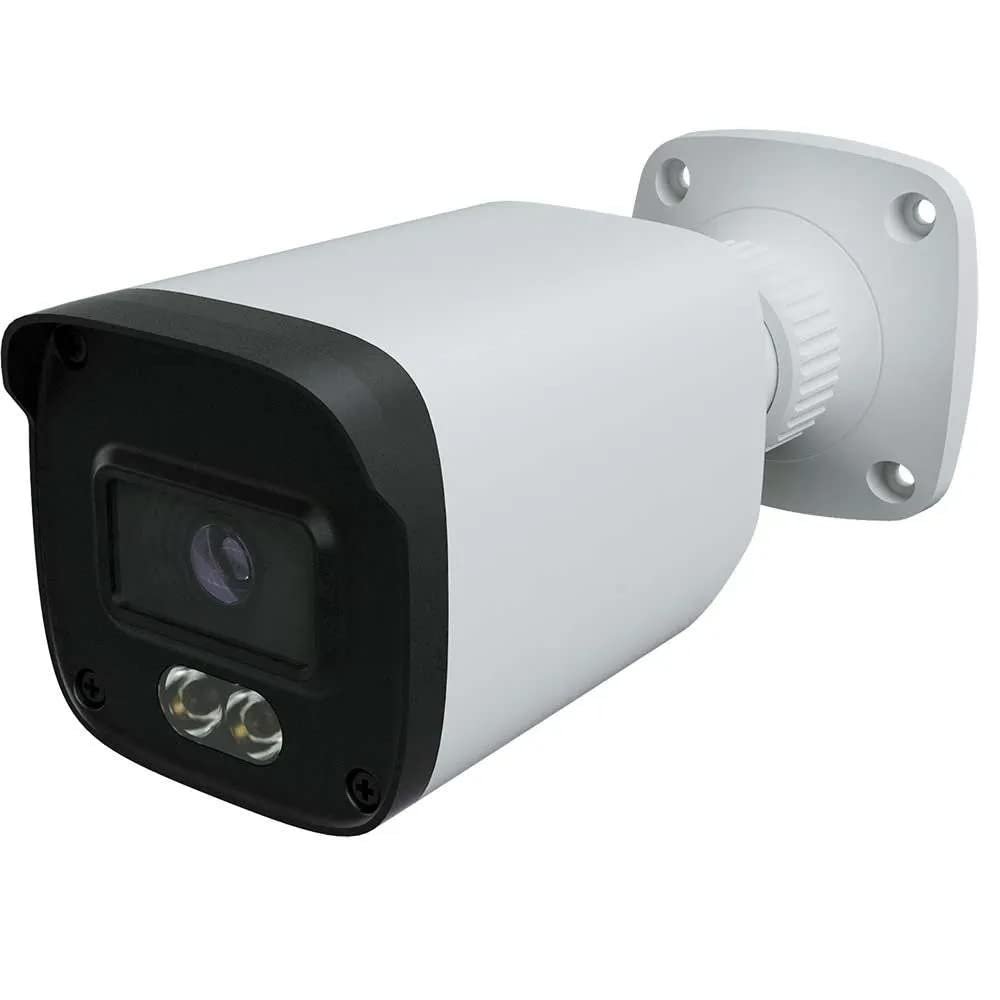

Titanium HDC-IR5AS21/36 5MP HD Full-Color Analog Bullet Camera, 3.6mm DWDR DNAA Compliant, BNC Connection

Description

• 5MP@20fps/4MP real time image, high resolution, true color. Up to 1500 TVL resolution CMOS progressive scan, perfectly capturing the moving object
• AHD / TVI / CVI standard and lossless video output
• Support OSD menu Support DWDR
• The LED can be automatically turned on at low illumination 66-98ft (20 ~ 30m) LED view distance
• High speed, long distance and real time transmission, IP67 ingress protection Support COC

Camera
Image Sensor 1 / 2.5 "CMOS
Resolution 5MP
Image Size 2560 x 1936
Video Output AHD / TVI /CVI
Image System PAL / NTSC
Electronic Shutter Auto; 1/50s~1/000000s(P); 1/60s~1/100000s(N)
LED View Distance 66-98ft (20 ~ 30m)
Frame Rate 5MP@20fps/4MP@30fps
Min. Illumination 0 lux with LED ON
Lens 3.6 mm
Lens Mount M12
S / N Ratio 52dB ( AGC OFF )
Ingress Protection IP 67
Functions
Function Control OSD ( COC Control )
Smart LED Yes
Digital WDR Yes
Digital NR Yes, 2D DNR
Global Exposure Yes
Central Exposure Yes
AGC Yes
Auto White Balance Yes
BLC Yes
Front Light Compensation No
Contrast Yes
Sharpness Yes
Image Setting Yes
Defect Correction Auto
Language Chinese and English
Angle Adjustment Pan: 0~360; Tilt: 0~80; Rotation: 0~360
Others
Power Supply DC12V ( 10% )
Power Consumption LED OFF : <1.5W; LED ON : <3W
Working Environment - 30 C ~ 50 C, 10 % ~ 90 %relative humidity
Dimensions (mm ) 165.7 x 69 x 69
Weight (net ) Approx. 0.37KG
