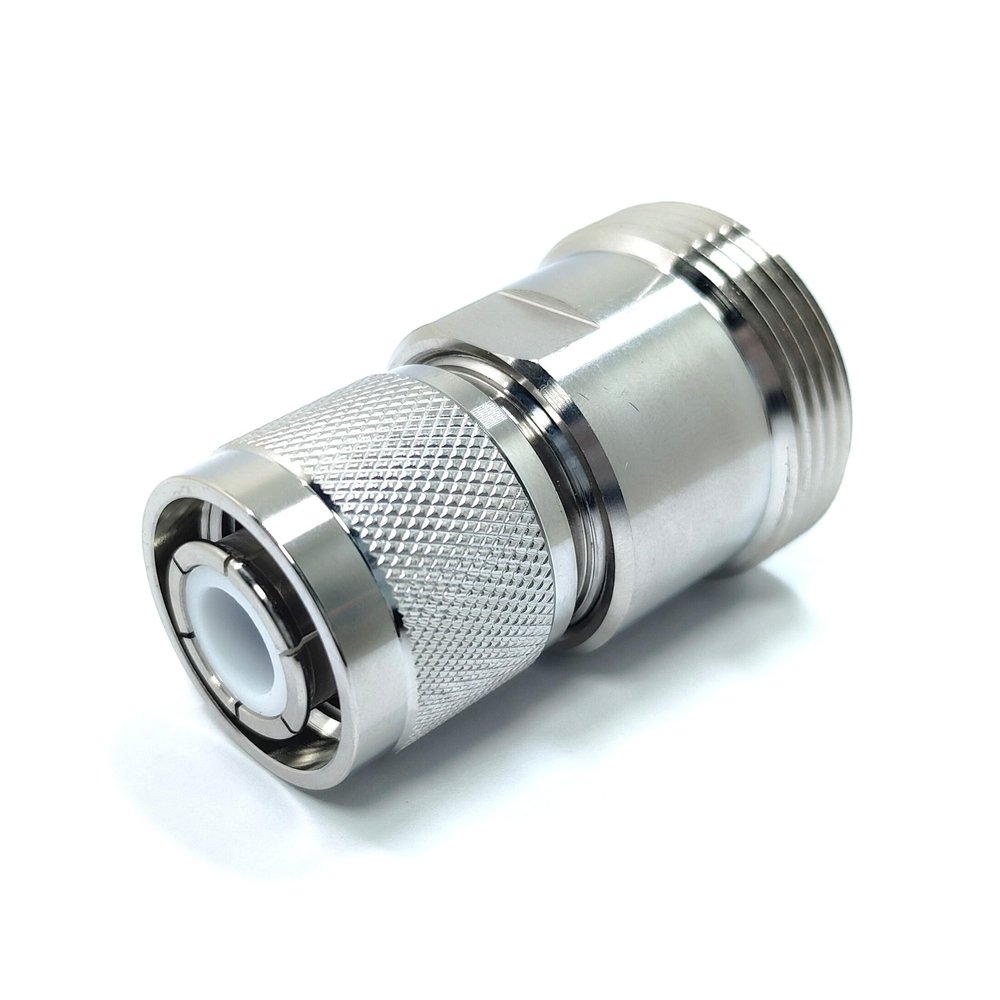

WORLDPEAK L29 7/16DIN Female Jack Connector to HN Male Plug Connector Coaxial Adapter

Description

• RF coaxial connector 7/16 Din female connector to HN male adapter, used in RF Applications, Coaxial cable, Antennas, Wireless LAN Devices, Wi-Fi Radios External Antenna and so on.
• Impedance :50 Ohm, Body Brass Tri-Alloy plated,PTFE Insulator
• Connector type: one side is HN male connector , another side is 7/16 din female jack
• Frequency Range :DC-6GHz VSWR 1.10 Insertion loss0.1dB PIM3 -160dBc
• Package Included: 1 x adapter HN Male to 7/16DIN Female

1.Electrical Characteristic Impedance :
50 ohm
Frequency Range :DC-6GHz
VSWR 1.10
Insertion loss0.05dB PIM3 ( @2-tonex20w) -160dBc
Dielectric Withstanding Voltage 2500V RMS,50Hz,at sea level
Dielectric Resistance 5000M
Contact Resistance : Outer contact1m;Center Contact1.0m

2.Material and plating
Body Brass Tri-Alloy plated Insulator PTFE Center conductor Phosphor bronze Ag plated
Temperature Range -40+85
