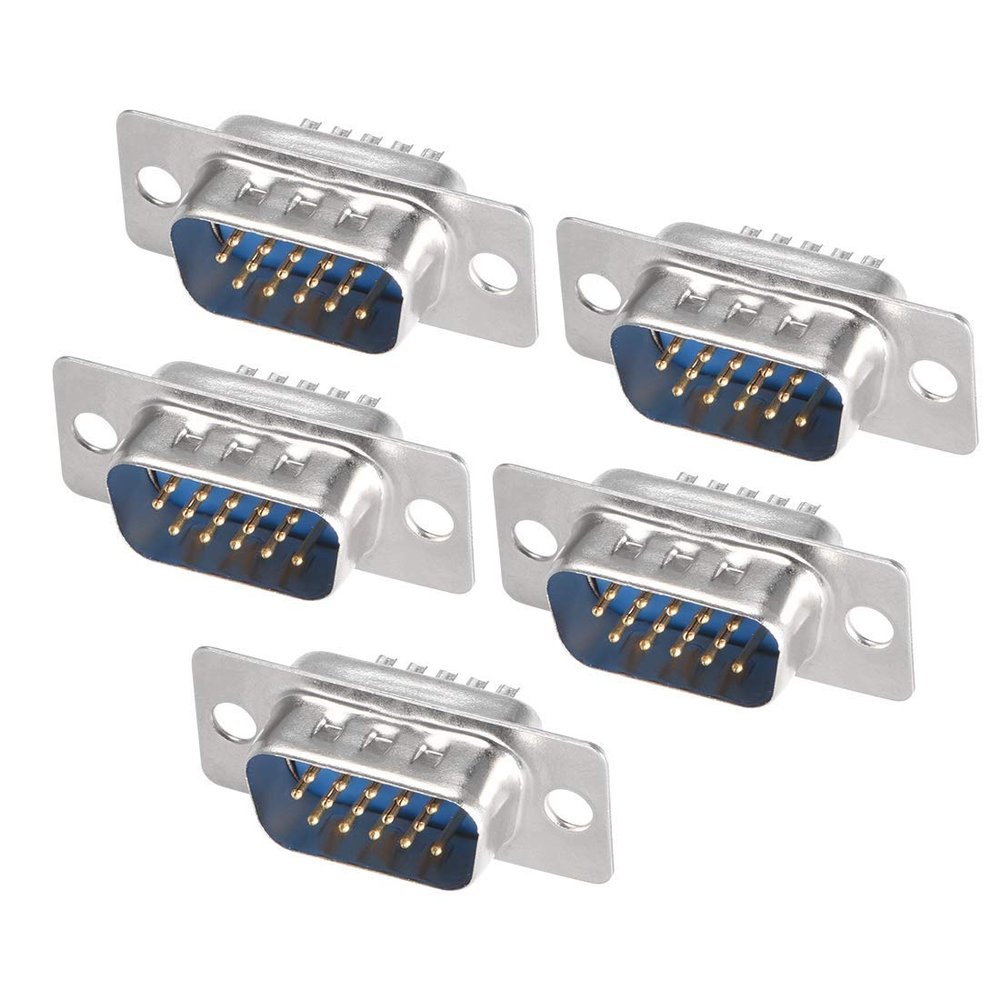

XYWHPGV D-sub Connector Male Plug 15-pin 3-Row Port Terminal Breakout for Mechanical Equipment CNC Computers Blue Pack of 5(43d49 9ecf3 7b381 4e32e c7b86 710b8

Description

• Connector Type: Plug(Male); Rating Current: 3A
• Number of Positions: 15; Number of Rows: 3;
• Termination Style: Solder Cup; Mounting Angle: Straight ; Overall Size: 30.8*12.5*17mm(L*W*H)
• This D-sub connector is used in computer serial ports and other widely used computer peripheral ports.
• Package Includes: 5 X Male D-sub Connectors

D-sub, rectangular D-shaped, d-sub connectors deliver one of the most commonly used and reliable connectivity solutions for the transmission of data.
Specifications:
Product Name: Male D-sub Connector
Connector Type: Plug(Male)
Contact Material: H65
Number of Positions: 15
Number of Rows: 3
Rating Current: 3A
Mounting Type: Panel Mount
Termination Style: Solder Cup
Mounting Angle: Straight
Pin Distance: 2.29mm
Mounting Diameter: 3.05mm
Mounting Distance: 25mm
Overall Size: 30.8*12.5*17mm(L*W*H)
Features:
Solder type connection between the cable and connector is very easy to connect and creates permanent and extremely durable connections from cable to connector.
This D-sub connector is used in computer serial ports and other widely used computer peripheral ports.
Package Includes:
5 X D-sub Connectors
