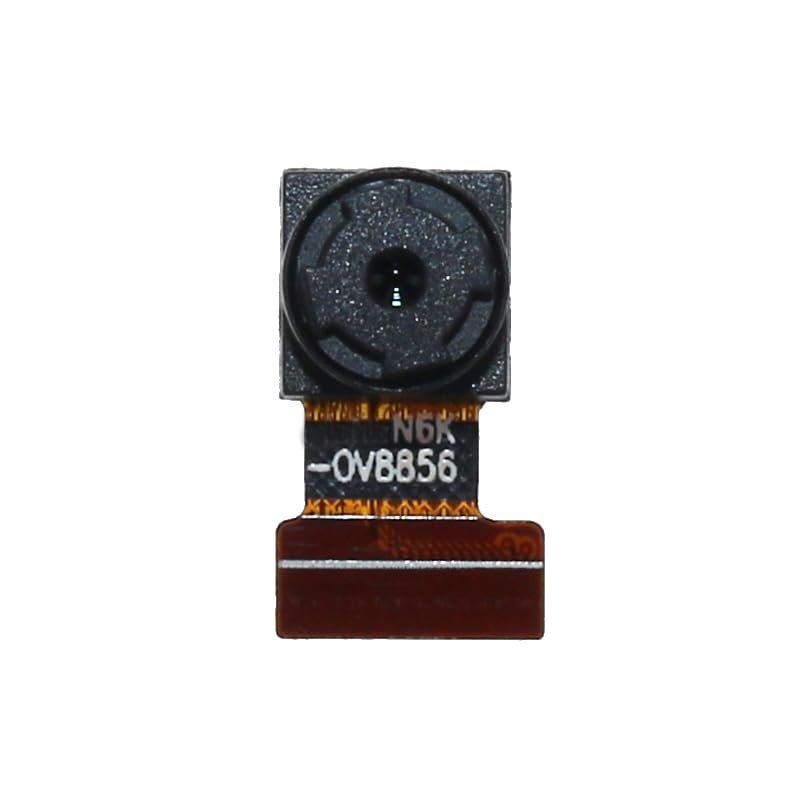

YDS-N6K-OV8856 V2.1 8MP High Definition OV8856 MIPI Interface Fixed Focus Camera Module

Description

• Programmable controls for: frame rate; mirror and flip; cropping; windowing
• supports images sizes: 8MP (4:3, 3264x2448); 8MP (16:9, 3264x1836); EIS 1080p (2112x1188); 1080p (1920x1080); EIS 720p (1408x792), and more.
• 8MP at 30 fps (720 Mbps/4-lane or 1.44 Gbps/2-lane)
• two on-chip phase lock loops (PLLs) two-wire serial bus control (SCCB)
• 8k bits of embedded one-time programmable (OTP) memory

YDS-N6K-OV8856 V2.1 is a MIPI interface fixed focus camera module based on OV8856 which is a new 1/4-inch 8-megapixel PureCel sensor designed for front- and rear-facing camera applications in mainstream mobile devices. Built on advanced 1.12-micron pixel architecture, the extremely compact OV8856 offers industry-leading image quality and improved performance when compared with previous-generation 8-megapixel image sensors. The 1/4-inch OV8856 leverages high definition PureCel pixel architecture to capture full-resolution 8-megapixel images and video at 30 frames per second (fps), and 1080p high-definition (HD) video at 60 fps. The power-efficient OV8856 sensor also supports interlaced high dynamic range (iHDR) for clear images and video in high- and low-light conditions. Using a high-speed four-lane MIPI interface, the OV8856 can output full-resolution, 8-megapixel 30 fps video over two MIPI lanes without requiring any data compression.
